RGB lighting has transformed mechanical keyboards from functional tools to elegant, expressive accessories. While consumers seek low profile switches that are compact and bright, innovation shouldn't be limited to switches themselves. One transformative innovation is the removable light guide pole, which plays an integral role in the diffusion of light through the switch and achieves even backlighting across the entire switch. This article delves into light guide poles, their importance in low profile switch design and GATERON's KS-33 Bamboo Clicky, which utilizes light guide poles in its design to create a more enjoyable and uniform RGB experience.
What Is a Light Guide Pole and Why Does It Matter?
Light guide poles sit within the housing of the switch and above the SMD (Surface Mount Device) LED on the PCB. As the name suggests, poles guide light and serve the important function of collecting light emitted from the LED and directing that light to the keycap.
No Light Guide
Light that is not contained is allowed to spread without control. This creates bright spots near the LED and leaves dim areas in the keycap's periphery. This type of backlighting is uneven and bland.
With a Light Guide
Poles help the scattering of light by providing a controlled path through the switch. This results in a more even illumination across the keycap, which enhances a keyboards build quality.
During Low Profile Switches Sale, switches with a low profile and therefore a reduced height require a more refined guide. A well-designed light guide is a critical addition because slimmer cases for light profile keyboards do not allow height for switches with thin height and broad necks.
The Detachable Light Guide Pole: A Portable Option

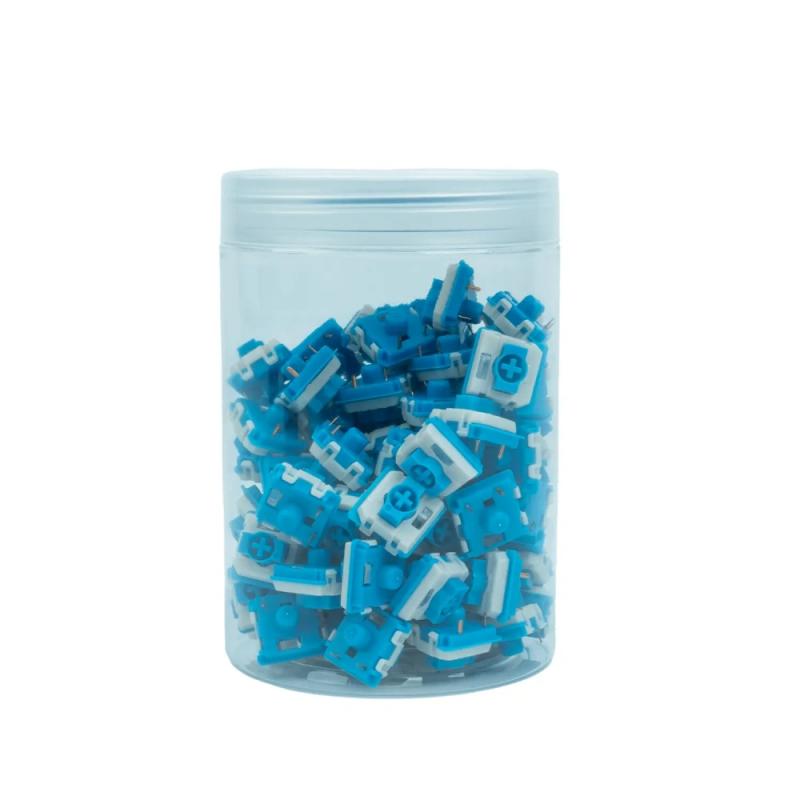

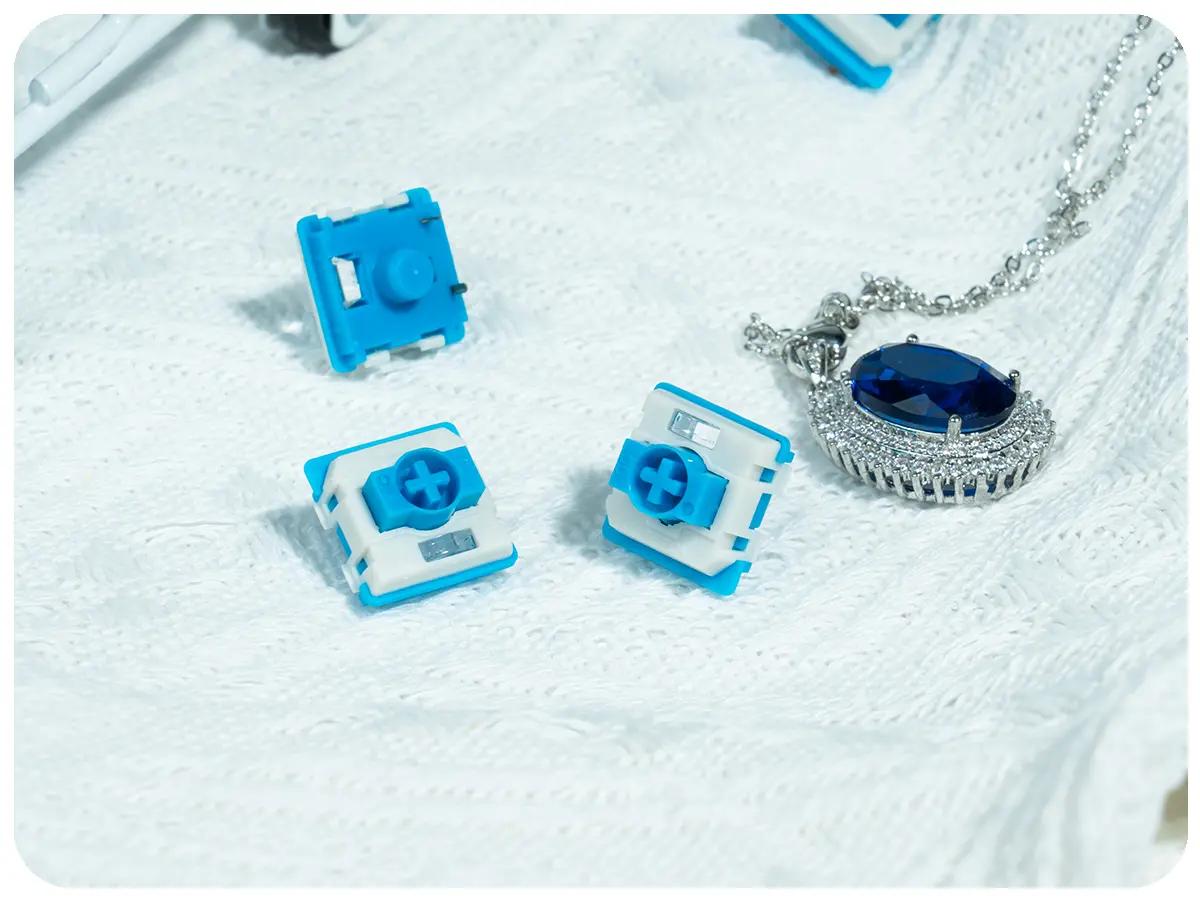

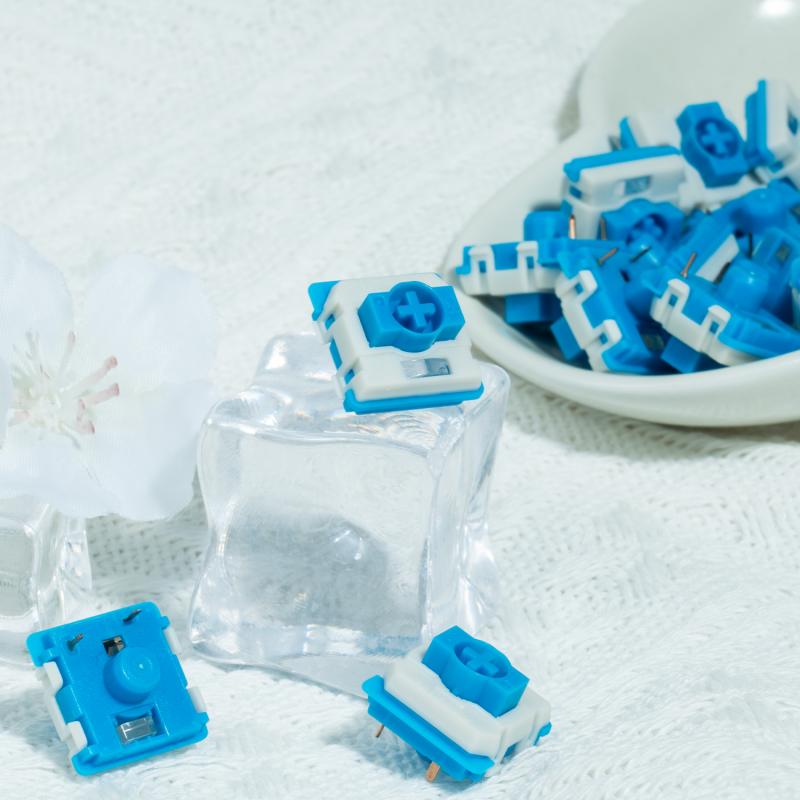

GATERON's KS-33 Low Profile 2.0 Bamboo Clicky Switch Set, with the addition of a detachable light guide pole, brings more practical benefits and solutions to builders and end users.
- Unrestricted personalization: Because the light guide is detachable, the builder/user gets to decide whether or not they want the guide in place and can even replace it according to desired lighting or choice of keycaps. This is especially useful with opaque keycaps that need a certain diffusion pattern or translucent keycaps that may require a clear light channel, thereby boosting the lighting.
- Eliminate extra work: The KS-33 light guide design, which is already optimized for SMD LEDs, means no more additional work to capture and channel light.
- Visual equality: With every key switch in the keyboard containing its own light guide, the brightness of the overall keyboard lighting is even, eliminating the common problem of some keys being lit more than others.
For Low Profile Switches Sale shoppers, the detachable light guide means more value with more flexibility and no sacrifice to the high quality performance.
How the KS-33 Light Guide Works with Switch Specifications
The KS-33 Bamboo Clicky combines its light guide pole with carefully engineered dimensions and materials to achieve optimal RGB output.
- Total travel (3.0±0.2mm) and pre-travel (1.7±0.5mm): These travel distances create enough internal space for the light guide to sit at the correct height, allowing light to travel upward without obstruction while maintaining a responsive typing feel.
- White POK top housing: POK material has better light transmittance than darker or opaque materials, which makes keycap lighting stronger.
- Blue POM Stem & Bottom Housing: POM is a great material choice for providing smooth key travel as it is self-lubricating and has a low friction co-efficient. When combined with a blue color choice, the stem and housing provide a slight aesthetic improvement when compared with the stock components, with the keycap's light guide still serving as the main light channel.
These components show that even in a slim RGB switch (compact design), good RGB performance is still achievable.
Brighter & More Diffused RGB Light – The Science
Compared with traditional KS-33's light guide pole provides superior RGB light with better diffusion and dispersion because of the following:
- Concentration: Compared tothe light guide pole provides more concentration and direction of the light in a narrow beam, while minimizing the amount of light that is lost to the keycap. Because of this, the switch can be backlit more brightly even if the LED is not driven to its full intensity.
- Diffusion: The light guide pole has a rough outer and inner surface. This allows the light to be spread in a more uniform manner and eliminates the "spotlight"effect (the effect that is created in a switch without a light guide) in keycap lighting.
The improvements that modular RGB switches provide, in terms of lighting, are great for both gaming and work lighting.
Material Choices and Their Impact on Long-Term Lighting
- POK top housing: POK provides the housing with excellent durability and light transmission. The housing can perform reliably for millions of keystrokes thanks to the durability of POK.
- POM stem and bottom housing: POM is self-lubricating, providing smooth keystrokes. The self-lubricating and stable nature of POM helps prevent dust and debris which can dull the light guide and keeps the light guide aligned.
- Pre-lubrication: GATERON's factory pre-lubrication applies the same lubricant to all switches within the factory, making friction negligible and providing protection to the internals. This makes sure the light guide stays where it needs to be for the entire lifetime of the switch.
Combining all these material and design elements, the KS-33 switches are ideal for Low Profile Switches Sale where design and durability are important to customers.
Why Detachable Light Guides Fit with 2026 Keyboard Trends
Among the main characteristics of modern mechanical keyboards, customizable light guides are an excellent example of integration of the main trends of the mechanical keyboard market: customization, portability and RGB.
- Customization: Users can customize the appearance of their keyboard by selecting different light guides, or even no light guide, which determines the diffusion of the light.
- Portability: the KS-33 light guide makes the keyboards highly portable without compromising lighting quality.
- RGB: The ability of manufacturers to provide detachable light guides in the RGB Market can provide manufacturers with a significant competitive advantage.
- Standardization for SMD LEDs: The KS-33 switch design is an example of the type of SMD LED solution that can be used to design an integrated solution on the PCB with minimal customization. A switch designed with an SMD LED can help as SMD LEDs become fully integrated on PCBs.
For users checking out the Low Profile Switches Sale categories, these details mean a more future-oriented investment.
GATERON's Comprehensive Design Philosophy
The KS-33 is not just a light switch; it combines several innovative elements that elevate the experience.
- Two-Stage Spring for Rebound: the two-stage spring is fast and rebound is consistent. These elements contribute to minimal rebound fatigue for the user even after long typing and gaming sessions.
- Factory Lubrication: Since each switch is evenly lubricated during the manufacturing process, high quality control is evident during use.
- 3-Pin Design for Stability: The three-pin design allows the switch to be mounted securely to the PCB, eliminating wobble and maintaining the alignment of the light guide.
The various components of the KS-33, along with the detachable light guide, create a versatile switch design for the performance user and the aesthetic user.
Conclusion
GATERON KS-33 Low Profile 2.0 Bamboo Clicky Switch Set has something to offer Low Profile Switches Sale shoppers. The set demonstrates how a detachable light guide pole can improve RGB performance without making the switch bulkier. The pole design can remove light hotspots, and improve diffusion. This can address the market demand for a keyboard that is both functional and stylish.
Light guides and RGB switches become integrated into more and more keyboards with the RGB technology becoming more dominant in keyboard builds. This makes the KS-33 a great switch option for expressive and functional keyboards, whether they are used for gaming, typing, or work.
Frequently Asked Questions
Q1: What is a mechanical switch with a detachable light guide pole?
It is a switch pole accessory that helps SMD LEDs provide even more brightness that distributes more evenly across the keycap.
Q2: What RGB LEDs are compatible with the KS-33 light guide?
The KS-33 light guide works best with SMD LEDs, which are the most prevalent RGB LEDs on PCBs.
Q3: Can I achieve various lighting effects by removing the light guide pole?
Yes. The light guide pole controls light diffusion, so removing it provides that option. The light guide pole can also be replaced with another light guide better suited for your keycaps.
Q4. Will my typing experience with the switch change if I use a light guide?
No. The material of the switch, which is POM/POK, is what gives the switch its feel. Light guides also have a compatibility with the 3.0mm travel.
Q5. Does a light guide offer an advantage for enhancing RGB, when compared to switches that do not feature a light guide?
Yes. Light guides focused the output of the switch LED's, therefore light diffusion is minimal, and the light is more evenly distributed when backlit.
