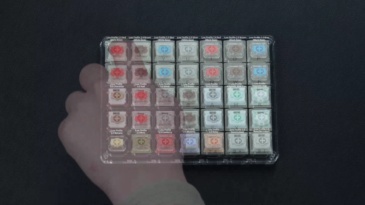

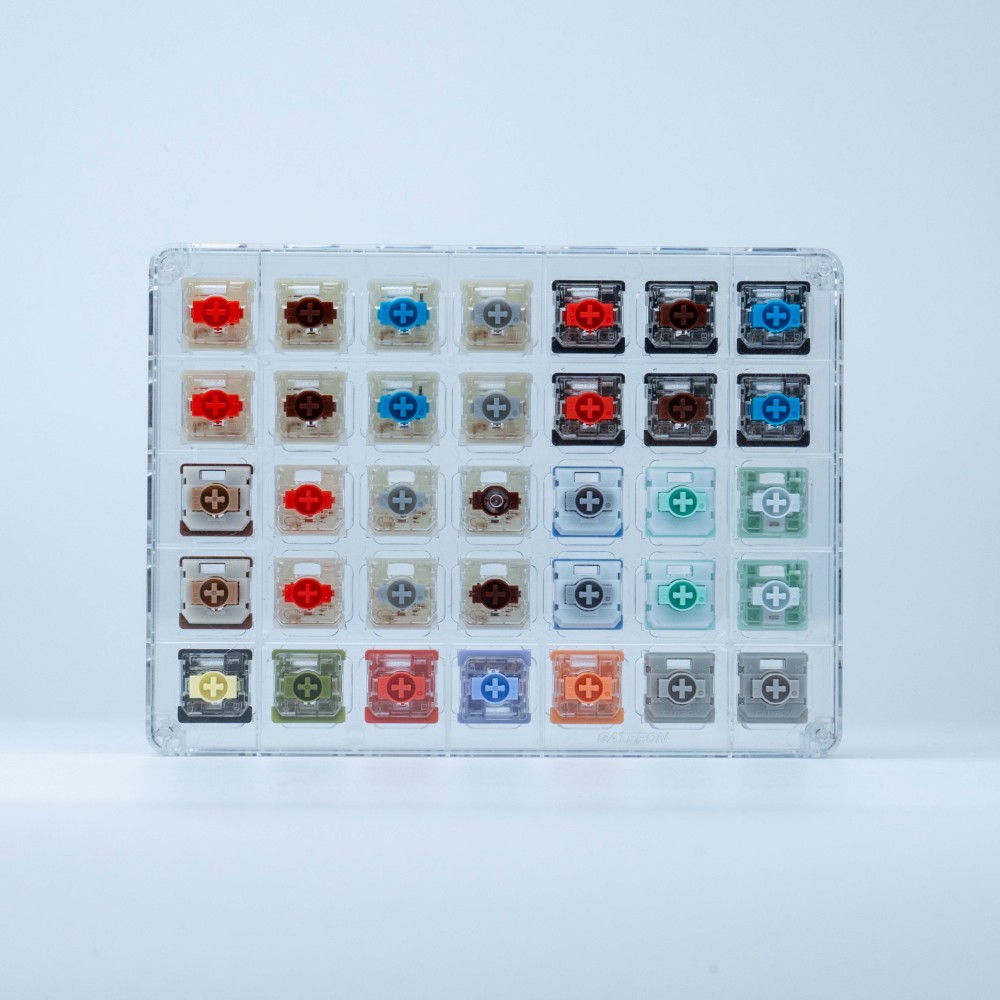

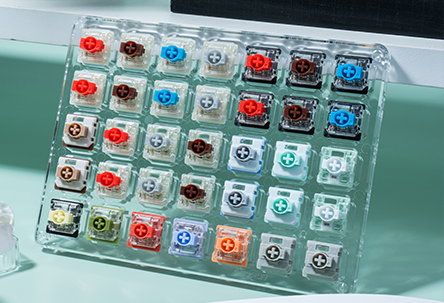

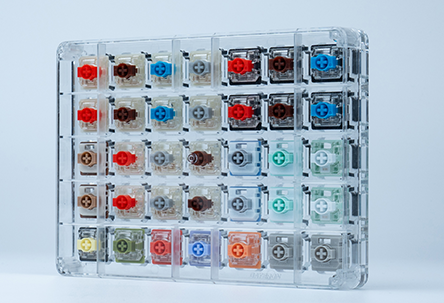

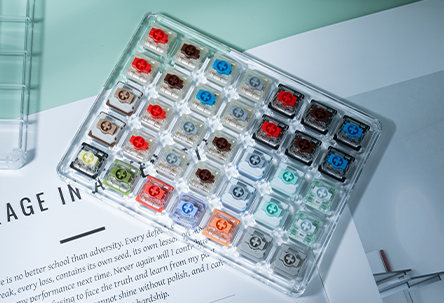

GATERON Low Profile Switches Series Tester With Sample Features
This low-profile keyboard switch tester offers a simple platform to test and compare various slim mechanical switches before committing to a full build. You can evaluate actuation force, travel distance, sound, and rebound feedback side‑by‑side. Its compact form suits small desks and helps you choose the perfect low‑profile switch without guesswork.
Supports multiple low-profile switch types for direct comparison
Provides real tactile feedback on force, travel and sound
Compact and portable form factor, suitable for desktop or travel use
| GATERON 35PCS Low Profile Switches Series Tester |
| Product Name |
Type |
Operating Force/
Initial Force
|
Pre-Travel |
Total Travel |
Pre-Lubed |
3-Pin/5-Pin |
|
KS-33 Low Profile 2.0 Red Switch
(White Bottom Housing)
|
Linear |
50+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
KS-33 Low Profile 2.0 Brown Switch
(White Bottom Housing) |
Tactile |
55+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
KS-33 Low Profile 2.0 Blue Switch
(White Bottom Housing) |
Clicky |
65+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
KS-33 Low Profile 2.0 Silver Switch
(White Bottom Housing) |
Linear |
50+15gf |
1.2±0.3mm |
3.2mm Max |
Yes |
3-Pin |
KS-33 Low Profile 2.0 Red Switch
(Black Bottom Housing) |
Linear |
50+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
KS-33 Low Profile 2.0 Brown Switch
(Black Bottom Housing) |
Tactile |
55+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
KS-33 Low Profile 2.0 Blue Switch
(Black Bottom Housing) |
Clicky |
65+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
| KS-33 Low Profile 2.0 Chocolate Switch |
Tactile |
55+15gf |
1.7±0.4mm |
3.0mm Max |
Yes |
3-Pin |
KS-33 Low Profile 3.0 Red Switch
(White Bottom Housing) |
Linear |
50+15gf |
1.7±0.4mm |
3.4mm Max |
Yes |
3-Pin |
KS-33 Low Profile 3.0 Silver Switch
(White Bottom Housing) |
Linear |
43+15gf |
1.2±0.3mm |
3.5mm Max |
Yes |
3-Pin |
KS-33 Low Profile 3.0 Brown Switch
(White Bottom Housing) |
Linear |
55+15 gf |
1.7±0.4mm |
3.4mm Max |
Yes |
3-Pin |
|
KS-33 Low Profile 3.0 Grey Heron Switch
|
Linear |
50+10gf |
1.7±0.4mm |
3.5mm Max |
Yes |
3-Pin |
| Low Profile Magnetic Jade Pro Switch |
Linear |
40±10gf
|
Freely setting |
3.5mm Max |
Yes |
|
| Low Profile Magnetic Jade Switch |
Linear |
30±10gf |
Freely setting |
3.5mm Max |
Yes |
|
| KS-33 Low Profile 2.0 Banana Switch |
Tactile |
60+15gf |
1.7±0.4mm |
3.0mm Max |
Yes |
3-Pin |
| Low Profile2.0 Moss |
Tactile |
60+15gf |
1.7±0.4mm |
3.0mm Max |
Yes |
3-Pin |
| LoW Profile 2.0 Cowberry |
Linear |
45+15gf |
1.2±0.3mm |
3.0mm Max |
Yes |
3-Pin |
| Low Profile 2.0 Wisteria |
Tactile |
55+15gf |
1.7±0.4m |
3.2mm Max |
Yes |
3-Pin |
| LoW Profile 2.0 Daisy |
Linear |
48+15gf |
1.7±0.4mm |
3.2mm Max |
Yes |
3-Pin |
| Low Profile 2.0 Nano(Lubed) |
Linear |
50+15gf |
1.7±0.4mm |
3.4mm Max |
Yes |
3-Pin |
| Low Profile 2.0 Nano(No Lubed) |
Linear |
50+15gf |
1.7±0.4mm |
3.4mm Max |
No |
3-Pin |
