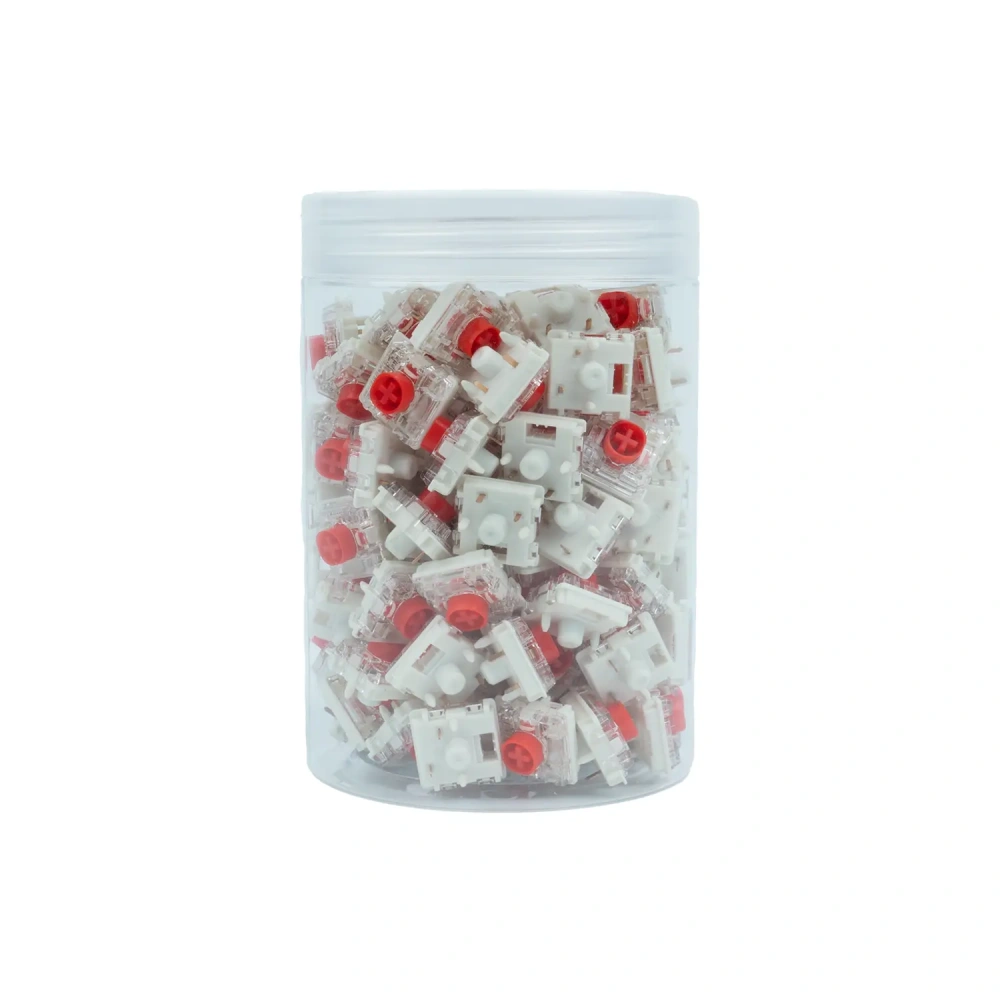

Low Profile Silent Mechanical Switches for Compact Keyboard Builds
GATERON KS-33 Low Profile Silent 3.0 Mechanical Switches are designed for compact mechanical keyboards that require a slim switch structure and a quieter typing experience. Combining a linear actuation design with carefully selected housing materials, these low profile silent mechanical switches offer multiple operating force options to suit different typing preferences.
The KS-33 Silent 3.0 series features a POM stem, transparent PC top housing, and black nylon bottom housing. Each switch comes pre-lubed to support smooth key movement and consistent operation. Its 5-pin configuration and SMD LED support make it suitable for compatible keyboard PCB designs.
GATERON KS-33 Low Profile Silent 3.0 Mechanical Switch Features
|
Type |
Operating Force |
Pre-Travel |
Total Travel |
Pre-Lubed |
Pins |
|

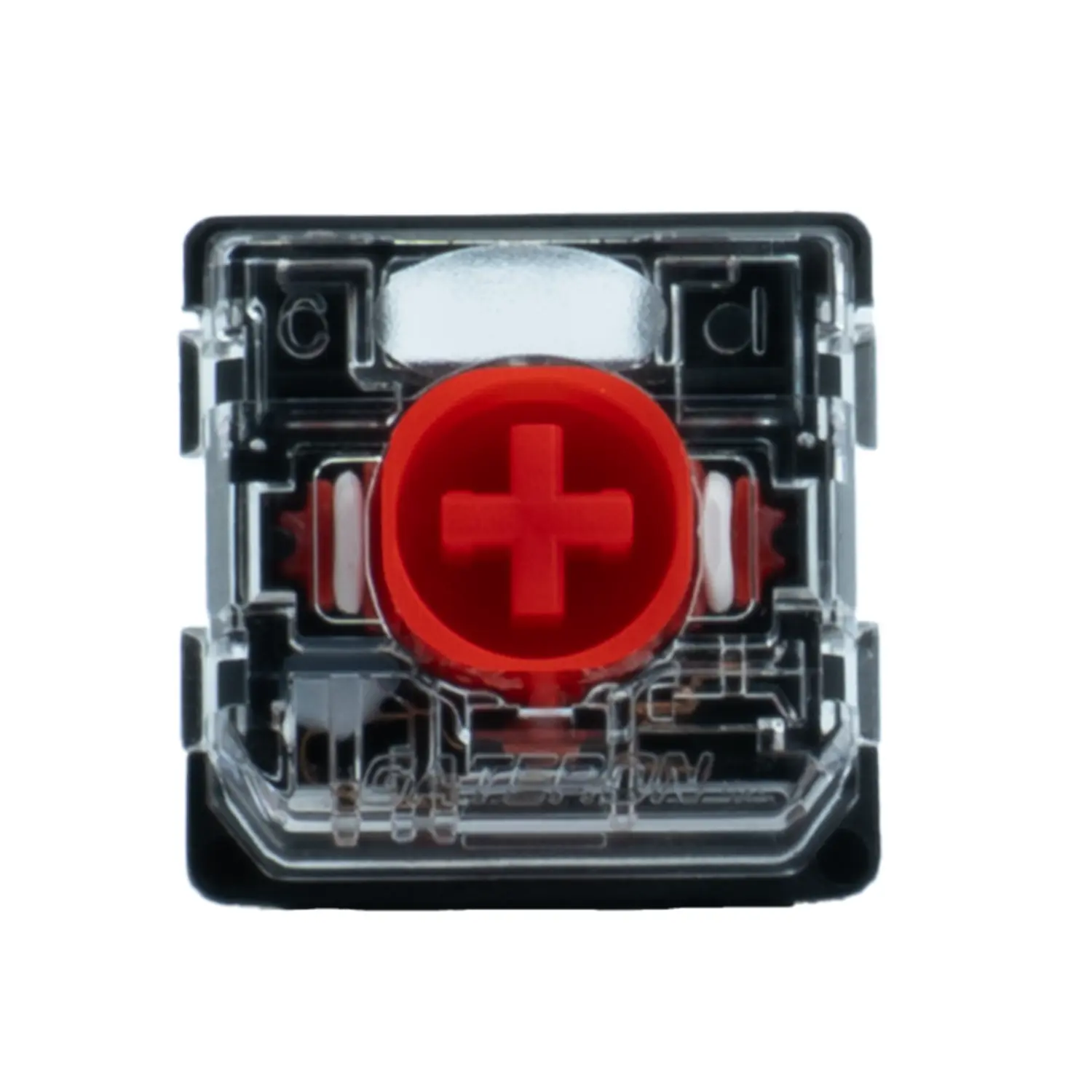

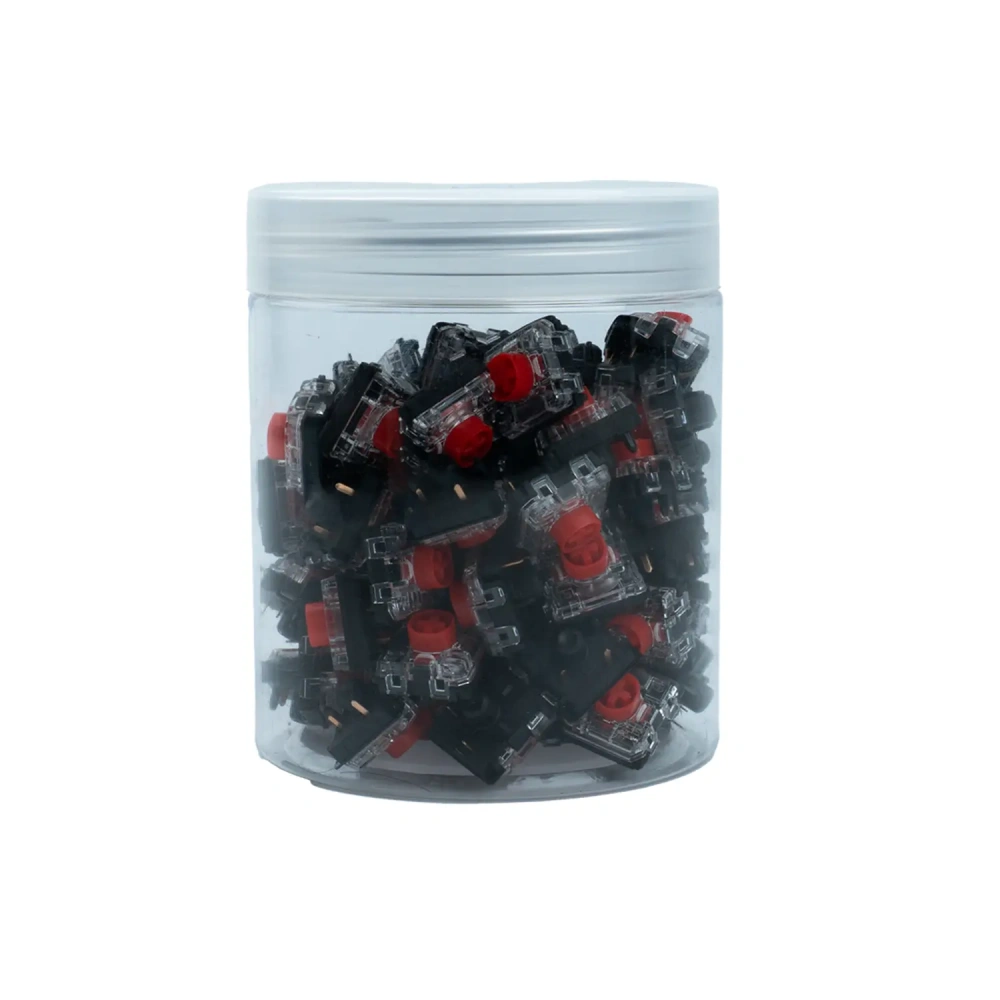

Red
(Black bottom)
|
Linear |
45±15gf
|
1.7±0.4mm
|
3.4 Max mm
|
Yes |
5 Pin |

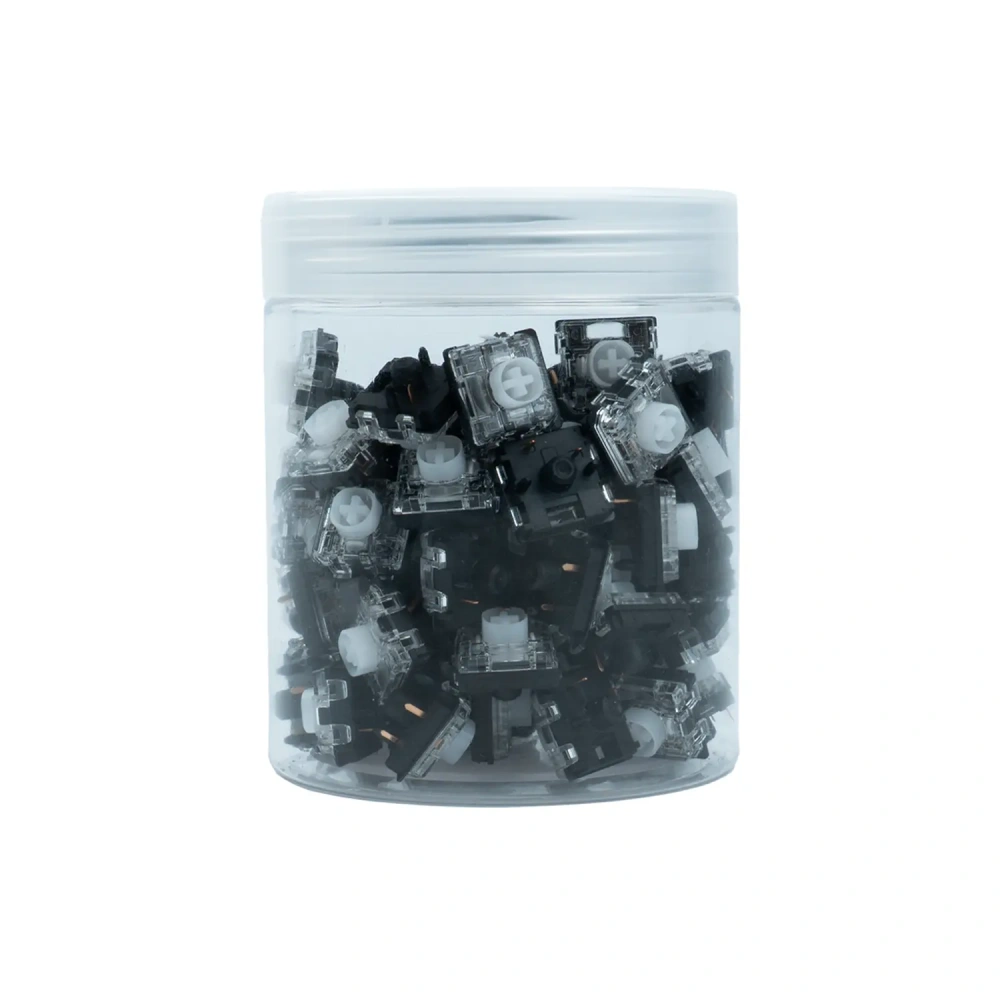

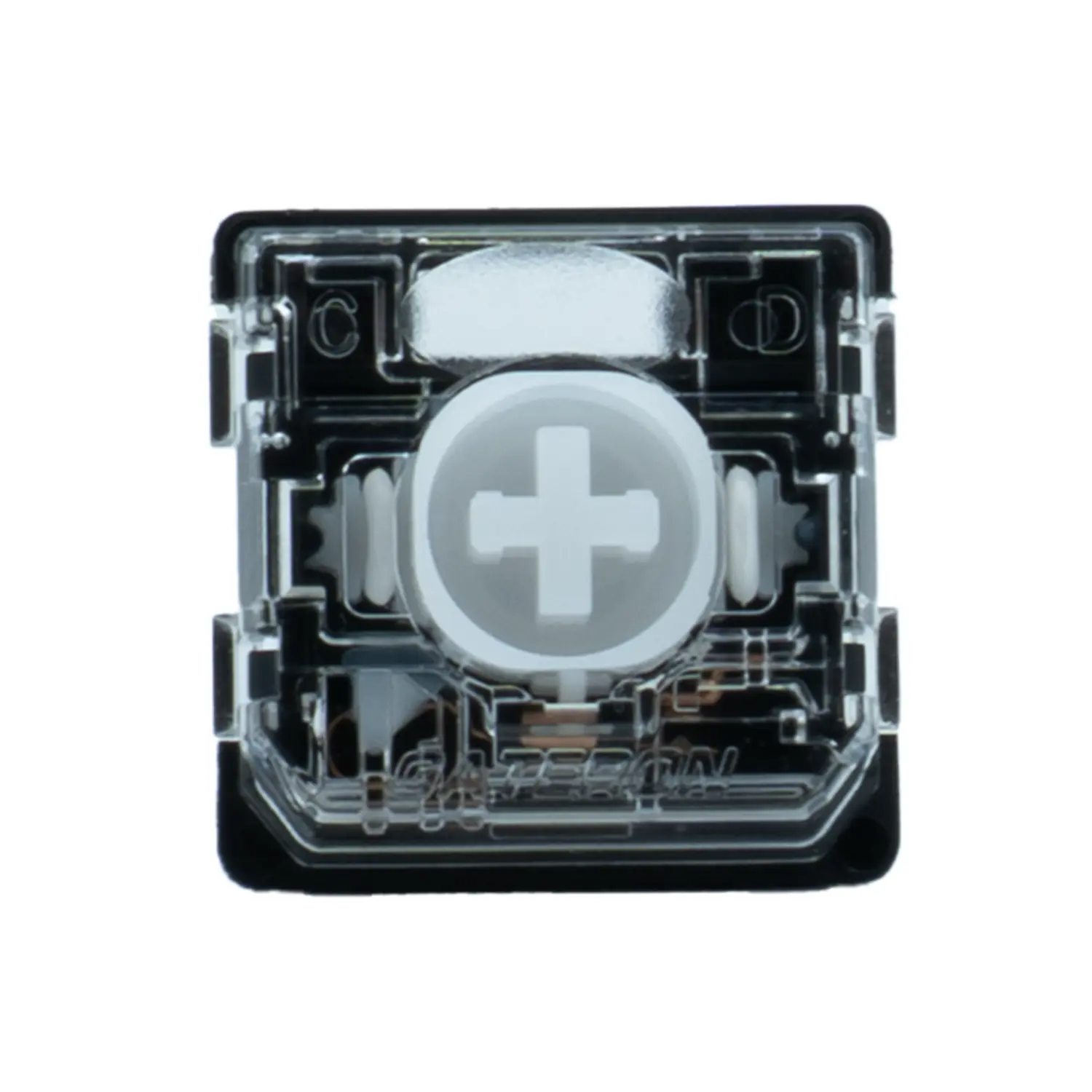

White |
Linear |
35±15gf |
1.7±0.4mm
|
3.4 Max mm
|
Yes |
5 Pin |

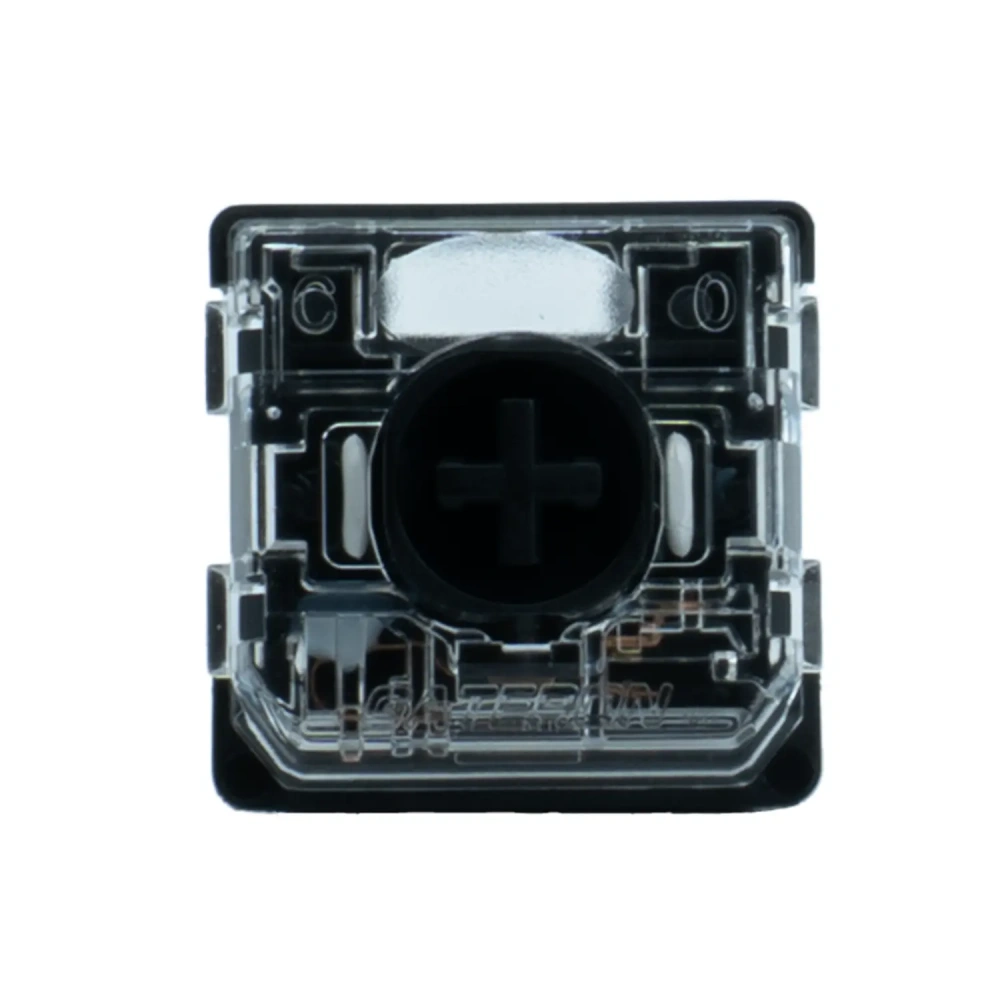

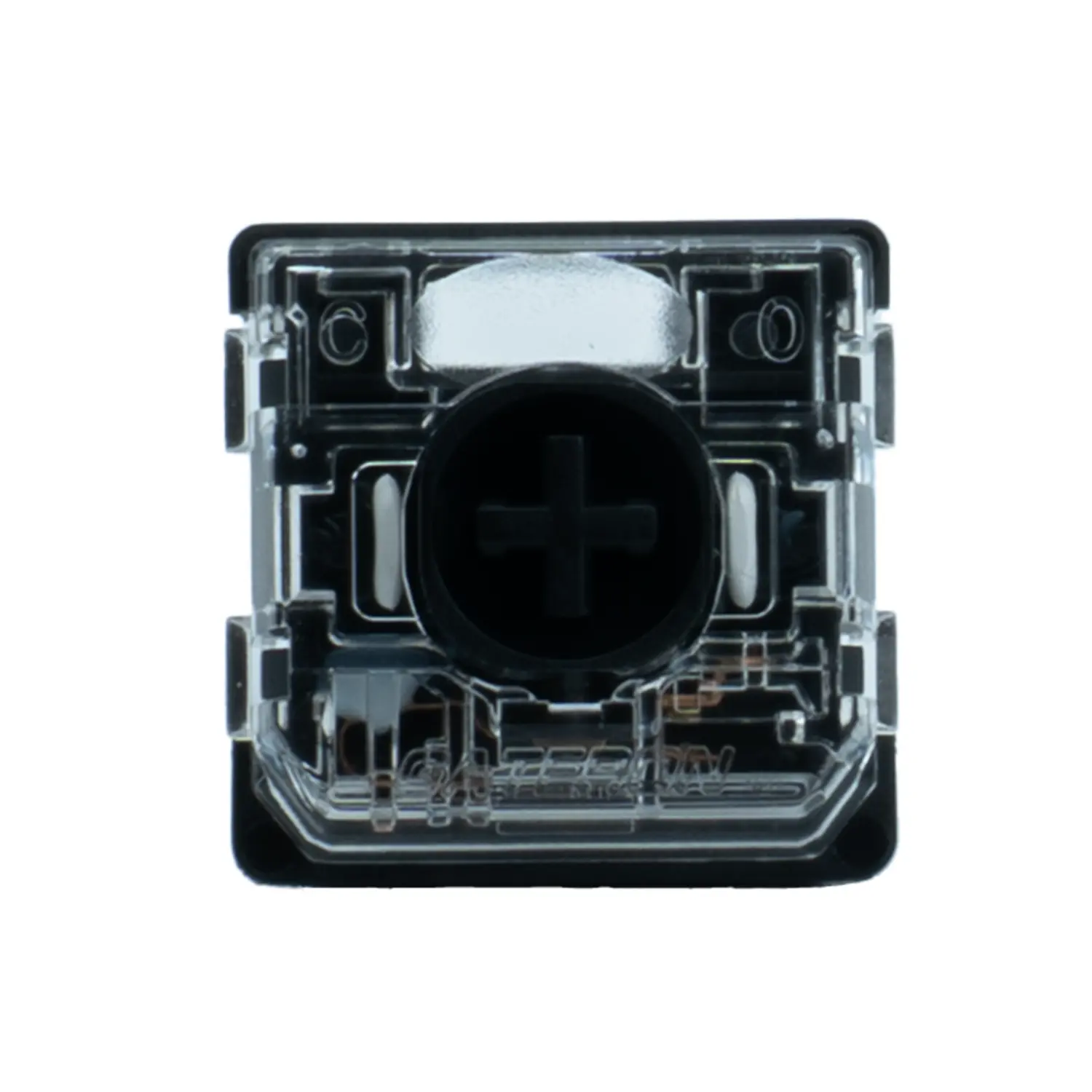

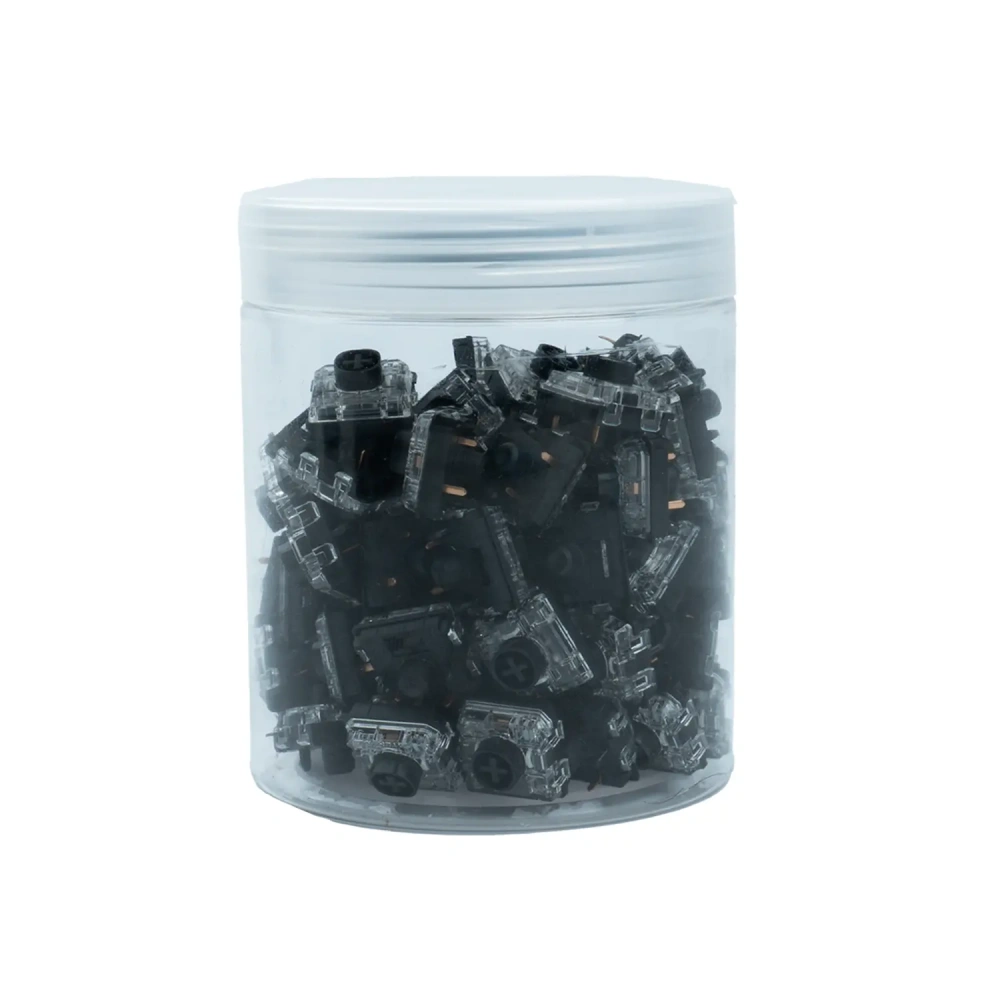

Black |
Linear |
50±15gf
|
1.7±0.4mm
|
3.4 Max mm
|
Yes |
5 Pin |
Red
(White Bottom) |
Linear |
42±15gf
|
1.7±0.4mm
|
3.4 Max mm
|
Yes |
5 Pin |
Compatibility and Keyboard Applications
Compatibility with Selected Low Profile Keyboards
The GATERON KS-33 Low Profile Silent 3.0 is designed for specific compatible keyboard platforms rather than universal replacement across all low-profile mechanical keyboards.
The currently listed compatible models include:
Before purchasing, users should verify the keyboard's PCB socket layout, switch mounting structure, and model compatibility.
Suitable Applications
-
Low-profile mechanical keyboard upgrades
-
Compatible compact keyboard switch replacement
-
Quiet typing-oriented keyboard configurations
-
Custom mechanical keyboard assembly using supported KS-33 platforms
