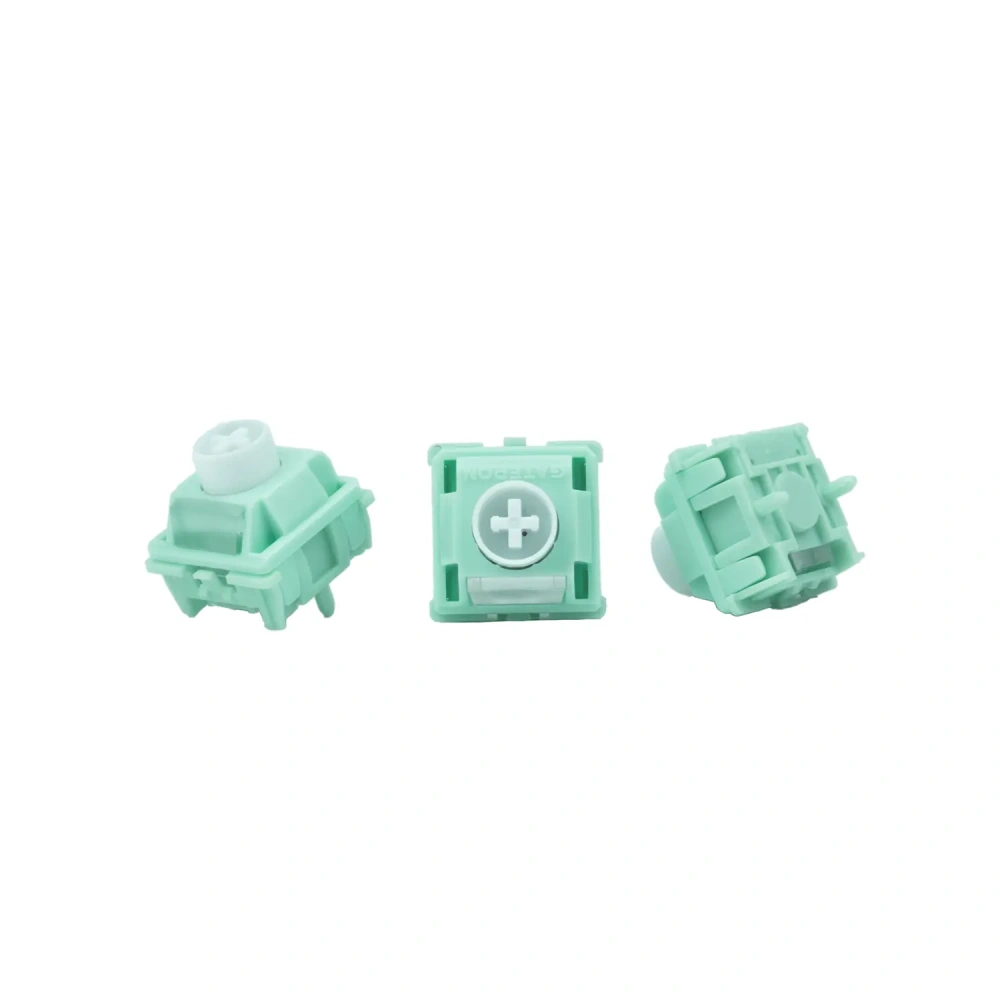

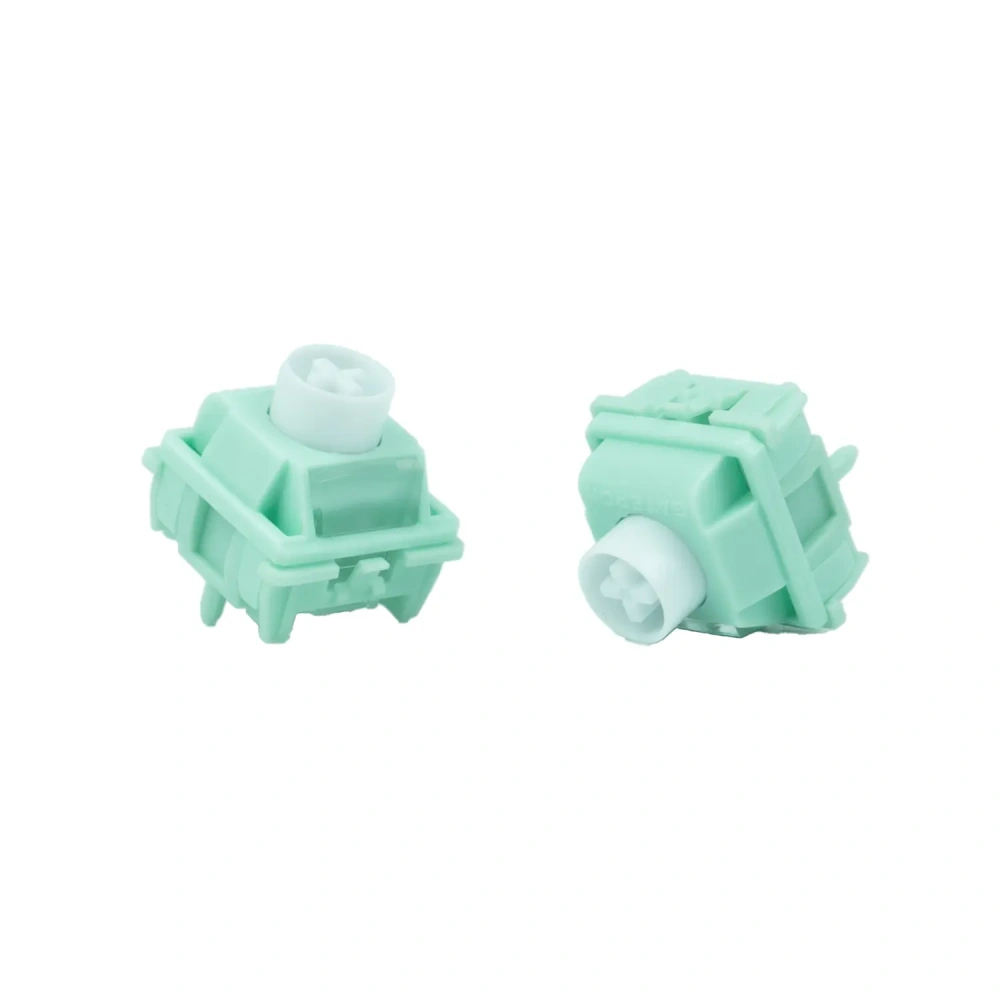

GATERON Magnetic Jade Silent Switch Features
The Gateron Magnetic Jade Silent Switch is a silent magnetic switch designed for Hall Effect keyboards, combining smooth linear travel with low-noise operation and adjustable actuation. Its POM construction, factory pre-lubing, stable magnetic performance, and RGB-friendly design make it a practical choice for gaming, office use, and custom keyboard builds where quiet typing and precise response are both important.
 |
Silence Unleashed Flow Beyond Distraction
GATERON Magnetic Jade Silent Switch |

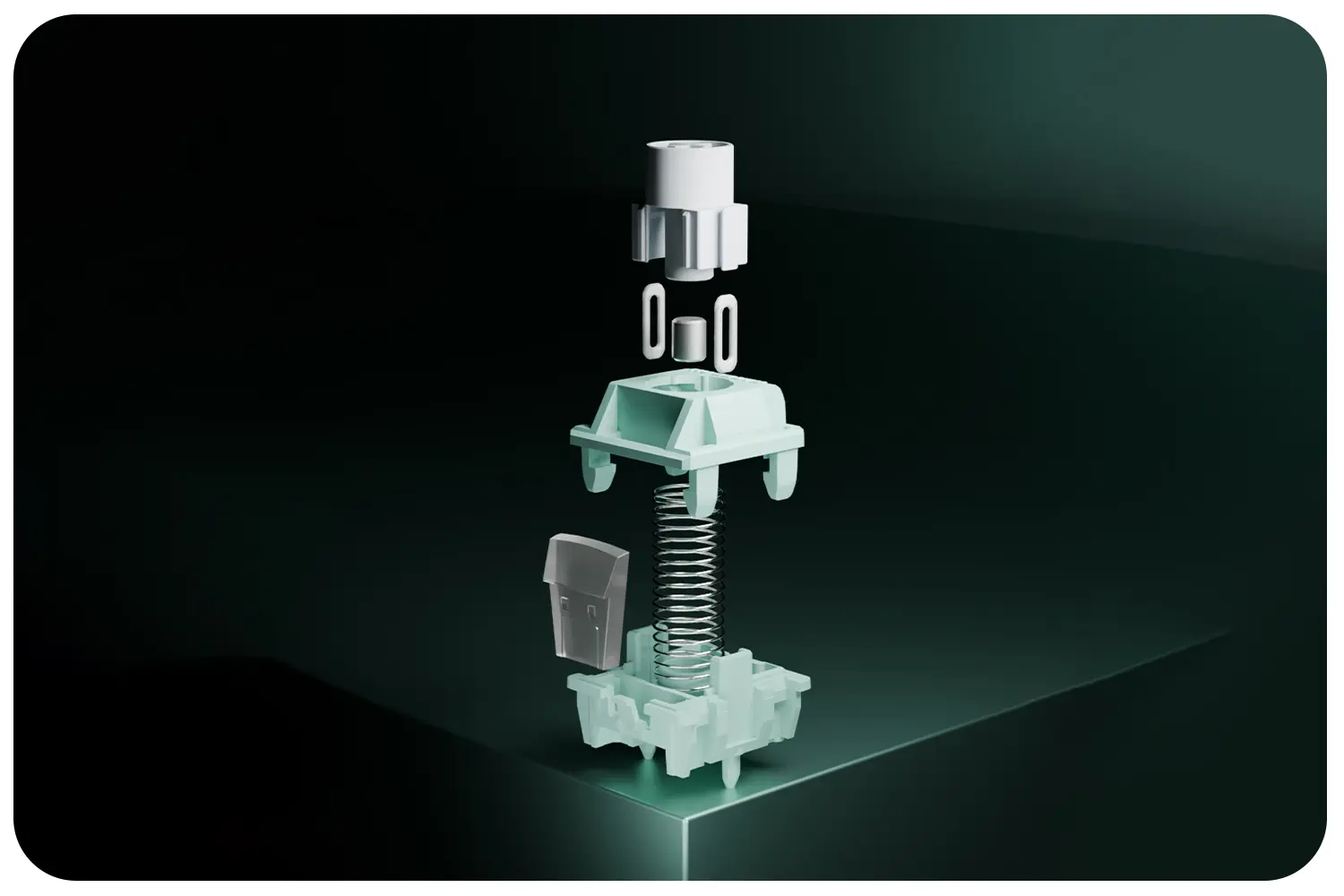

Specially Crafted Dual-Ring Sound-Dampening Structure
Specially Crafted Sound-Dampening Rings Encase Both Sides of the Stem, Absorbing Impact Noise From Both Bottom-Out and Rebound.
Featuring a Unique Oval-Inspired Irregular Structure,
With Precision-Engineered Irregular Edges,
Effectively constrains the lateral deformation of the Dampening Rings, achieving ultra-low-decibel, comprehensive, Deep Silence. |
 |
 |

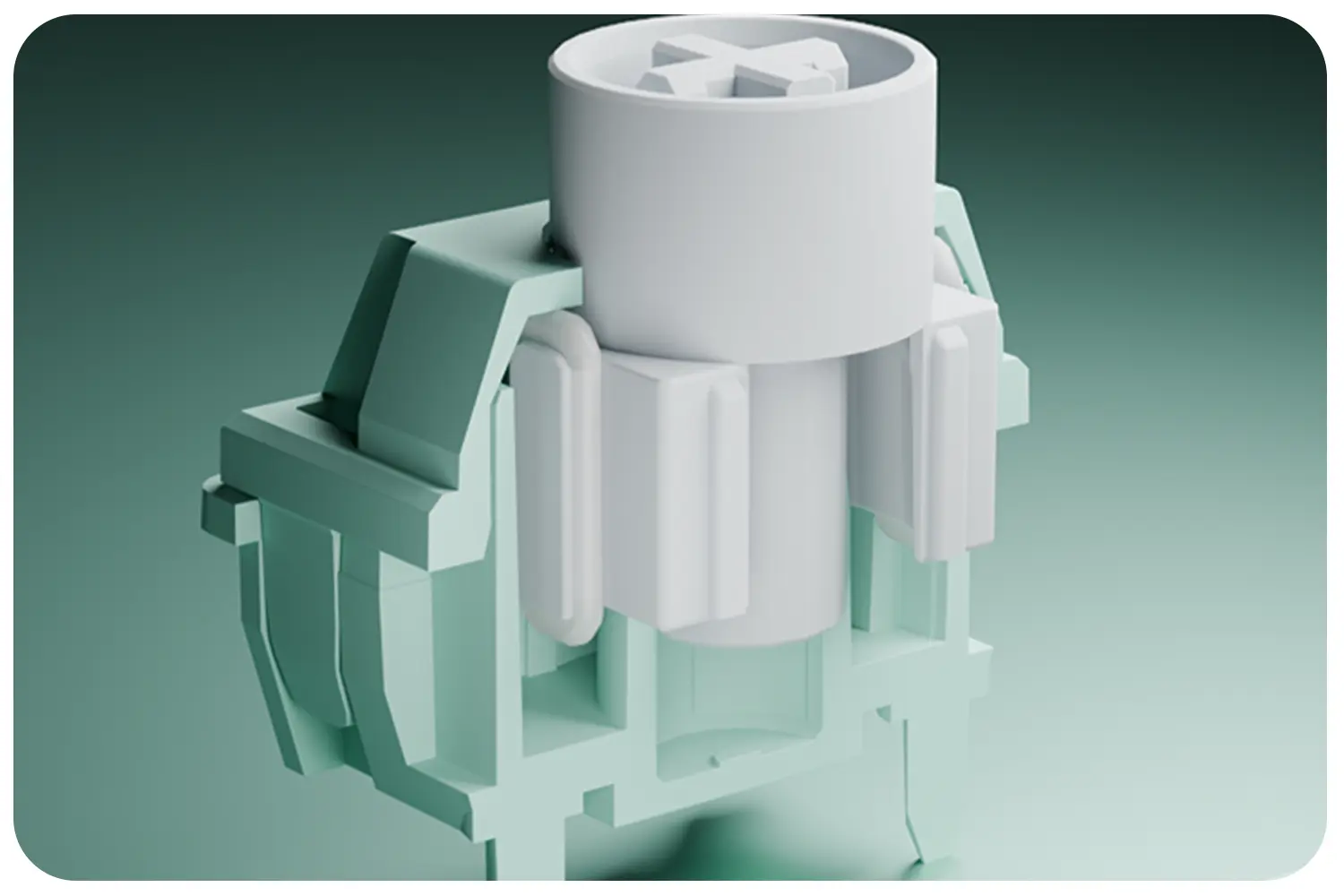

360° All-Round Stability Zero Offset at Any Angle
Cylindrical stem, no traditional stem wobble. Consistently straight, precise keystrokes. |

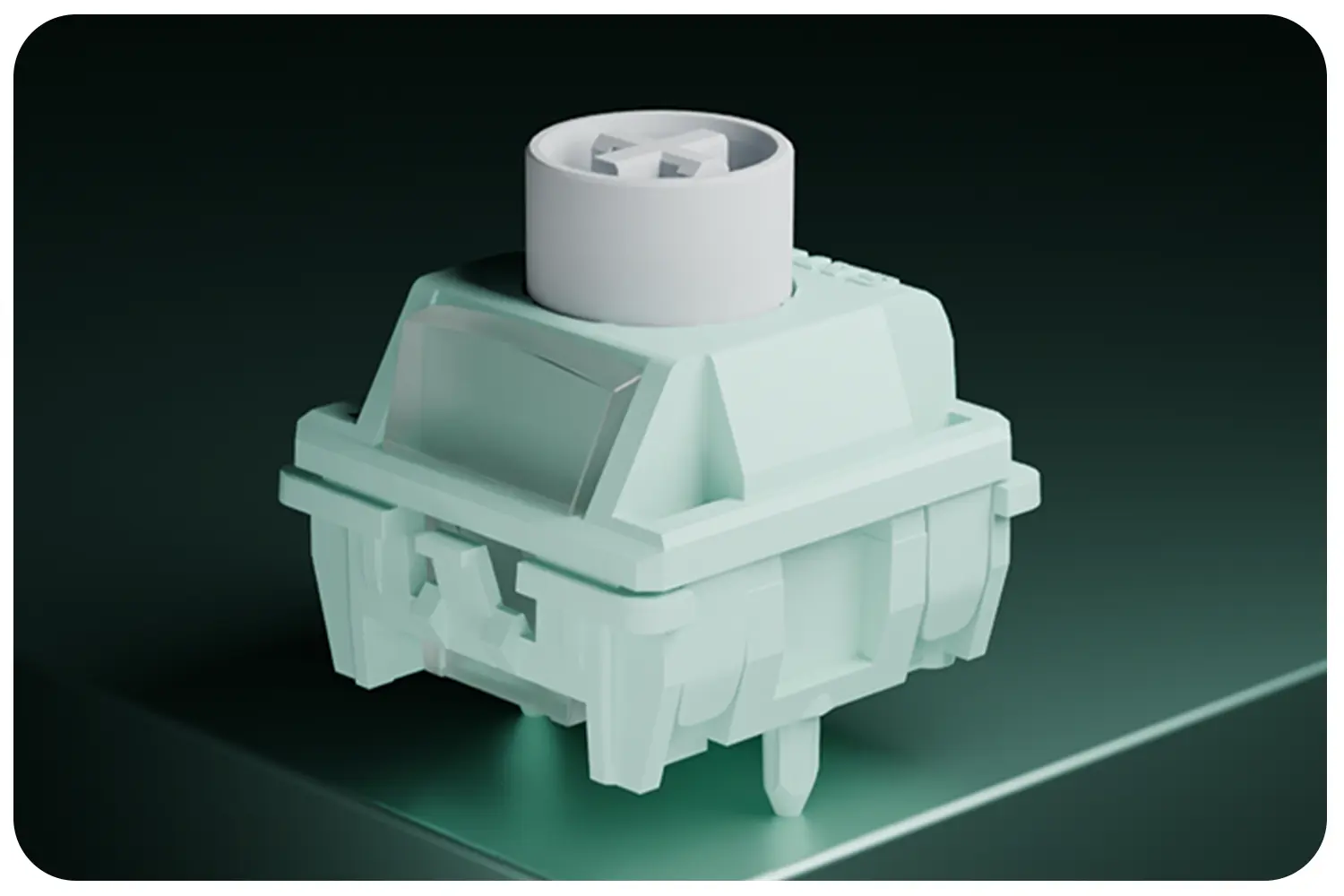

POM Stem & Top Housing
The stem and top housing are made from POM, a material known for its naturally low-friction properties, delivering a smooth, linear feel. With continued use, the surface becomes even smoother over time for an increasingly refined typing experience. |
 |
 |

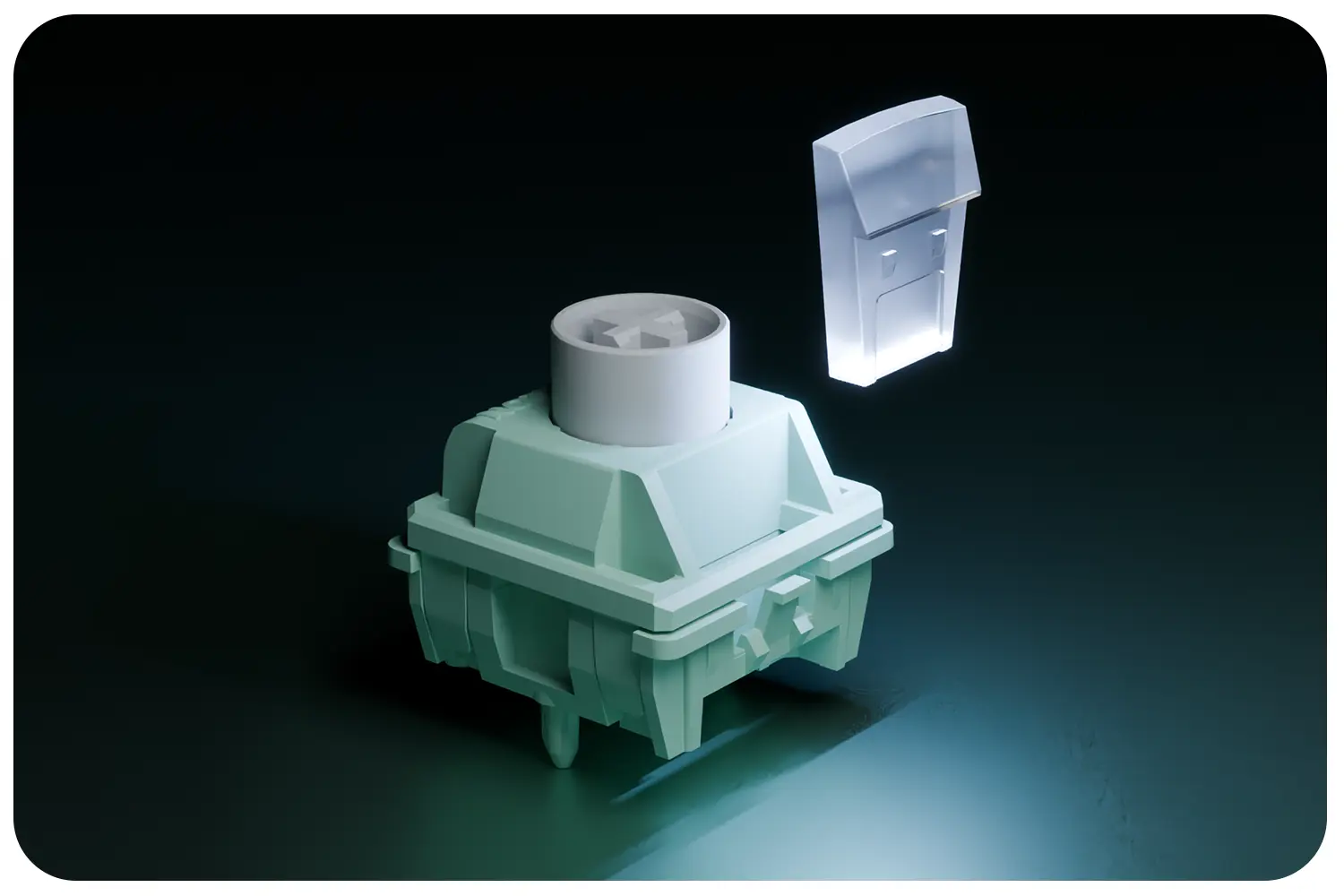

Detachable Light Guide Diffuser
Customize your lighting effects with ease
A soft, even glow for visual comfort creates a More Immersive Gaming Atmosphere. |
Flagship Magnetic Core, the Source of Performance.
Rare formulation, Built for Consistency.
Engineered by Gateron's proprietary magnet facility.
Rare-earth permanent magnets with a proprietary alloying process.
Ultra-high intrinsic coercivity for lasting stability.
Consistent magnetic force across every switch.
Long-term stability is built in from the start. |
 |
 |

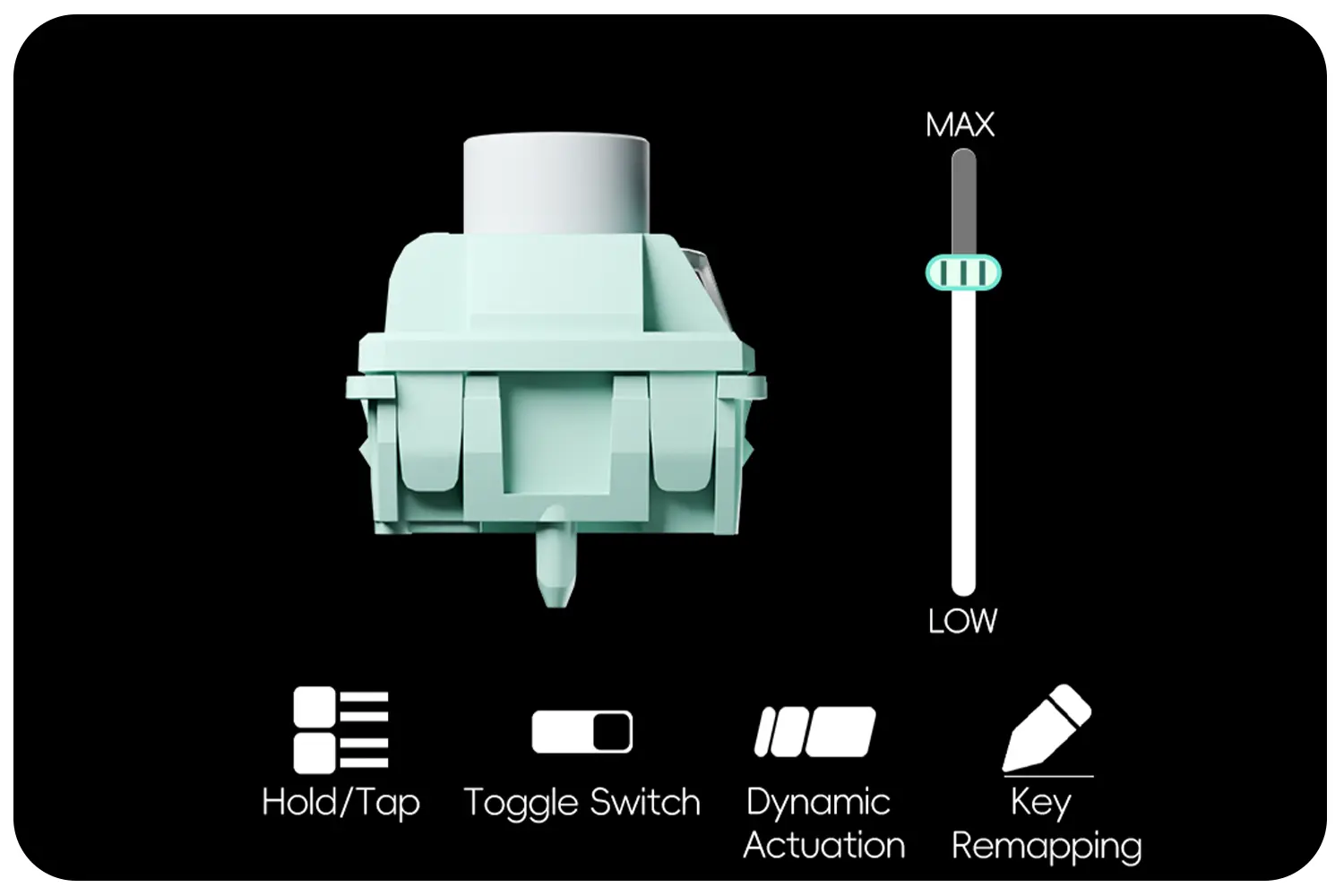

Freely Setting Pre-travel
Customize pre-travel via keyboard driver |
| GATERON Magnetic Jade Silent Switch |
| Type |
Linear |
| Pre-Travel |
Freely Setting |
| Total Travel |
3.2±0.2mm |
| Initial Force |
33±5gf |
| Initial Magnetic Flux |
125±8Gs（PCB1.2mm） |
| Bottom-out Magnetic Flux |
700±30Gs（PCB1.2mm） |
| Keystroke |
60000000Min+ |
| Bottom-out Force |
45±10gf |
|
 |

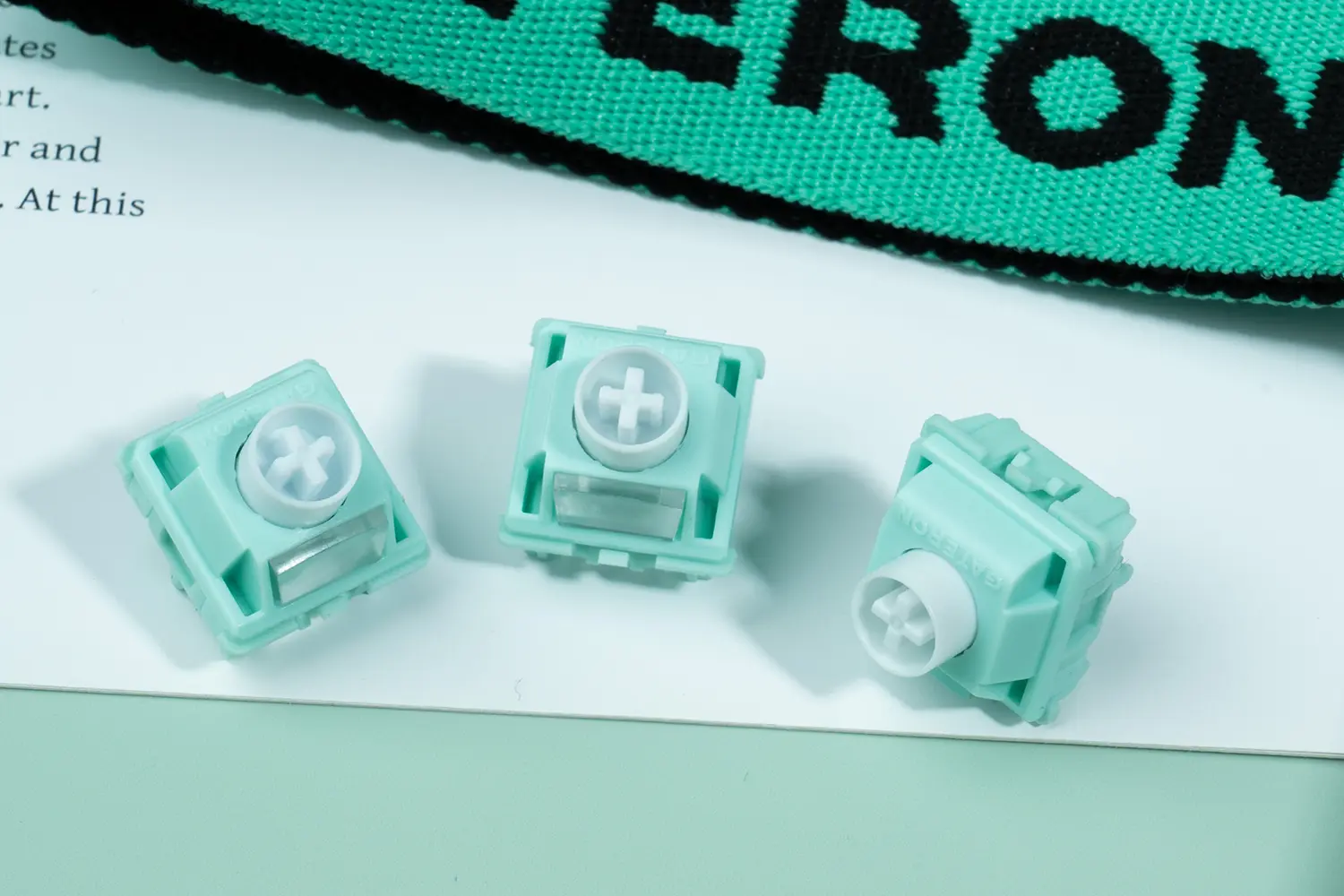

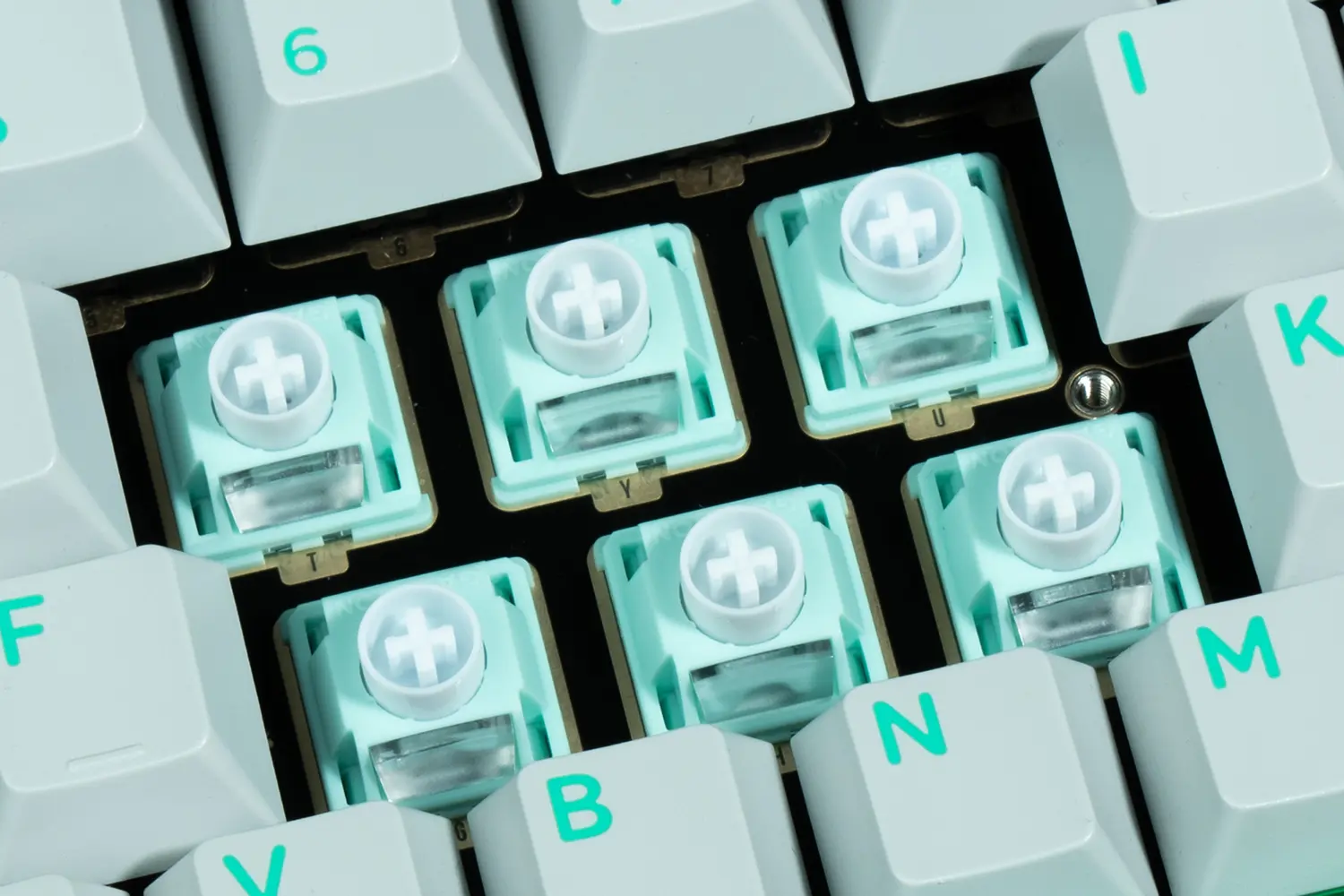

Product Gallery
