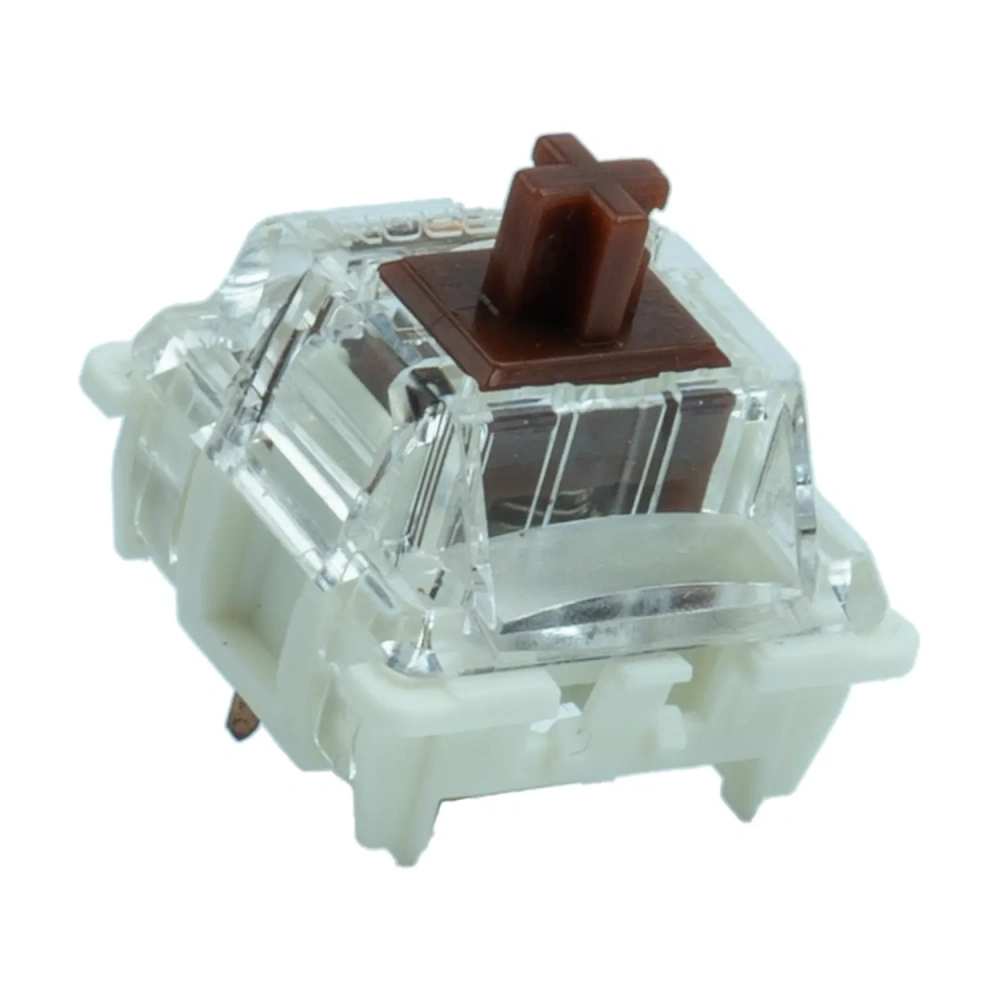

GATERON G Pro 3.0 Series Features
Keyboards with hot-swap have become more and more popular, user can replace the switch freely However, the thinner pins will be folded and bent if there is improper operation in the plugging and unplugging process, many players who like DIY expect to get an upgraded switch with a harder pin To resolve this concern from players, GATERON released G Pro 3.0 in the year 2023 including the upgraded pin, keeping on the high precision protection and valuable product in premium quality.
• G Pro 3.0 keep the condenser light effection structure but upgrades the light guide column surface in texture finish, which makes the LED effection more even and consistent.
• The pin is upgraded to be harder in the G pro 3.0 to be more a reliable connection with less deformation of pins, and longer a lifetime.
| Photo |
Stem |
Operation |
Pre Travel |
Total Travel |
PCB Mount |
Type |
Pre Lubed |
Apply For LED |
|
|

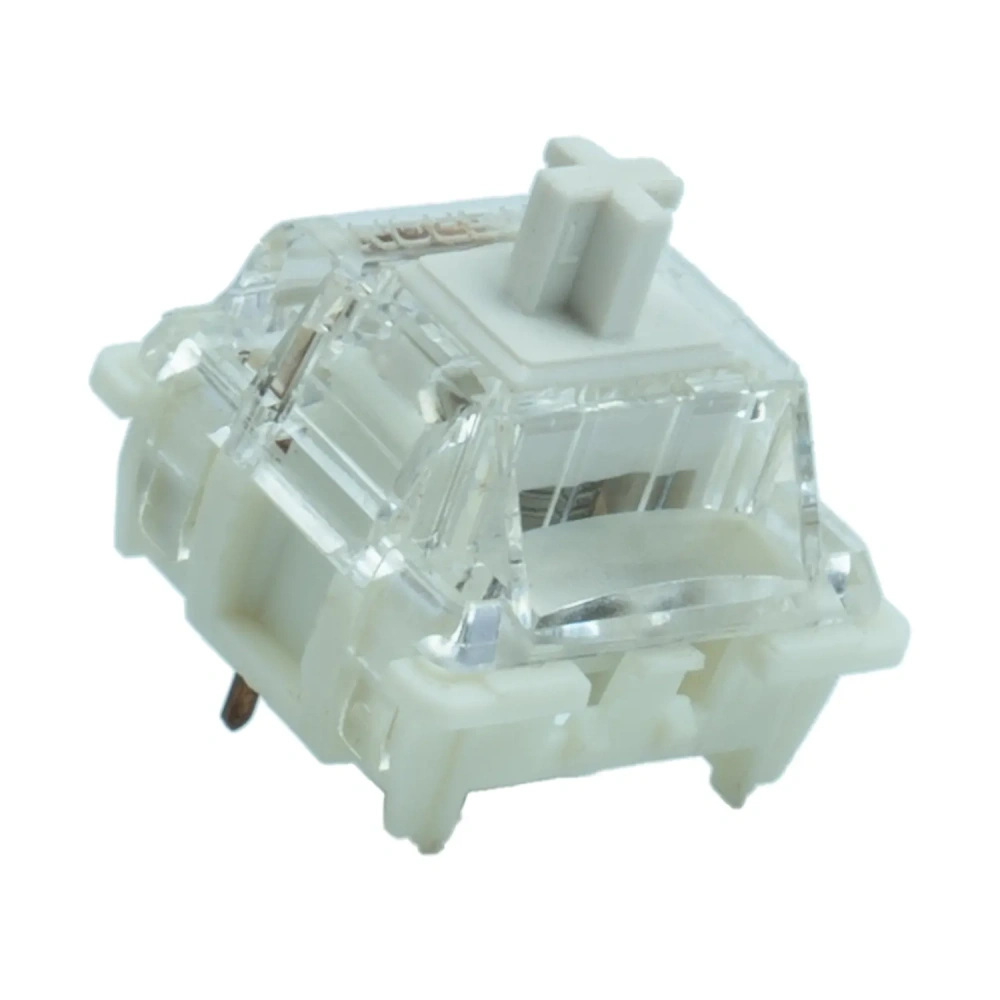

White |
38±15 gf |
2.0±0.6 mm |
4.0 max |
3-Pin/5-Pin |
Linear |
Yes |
SMD |
 |

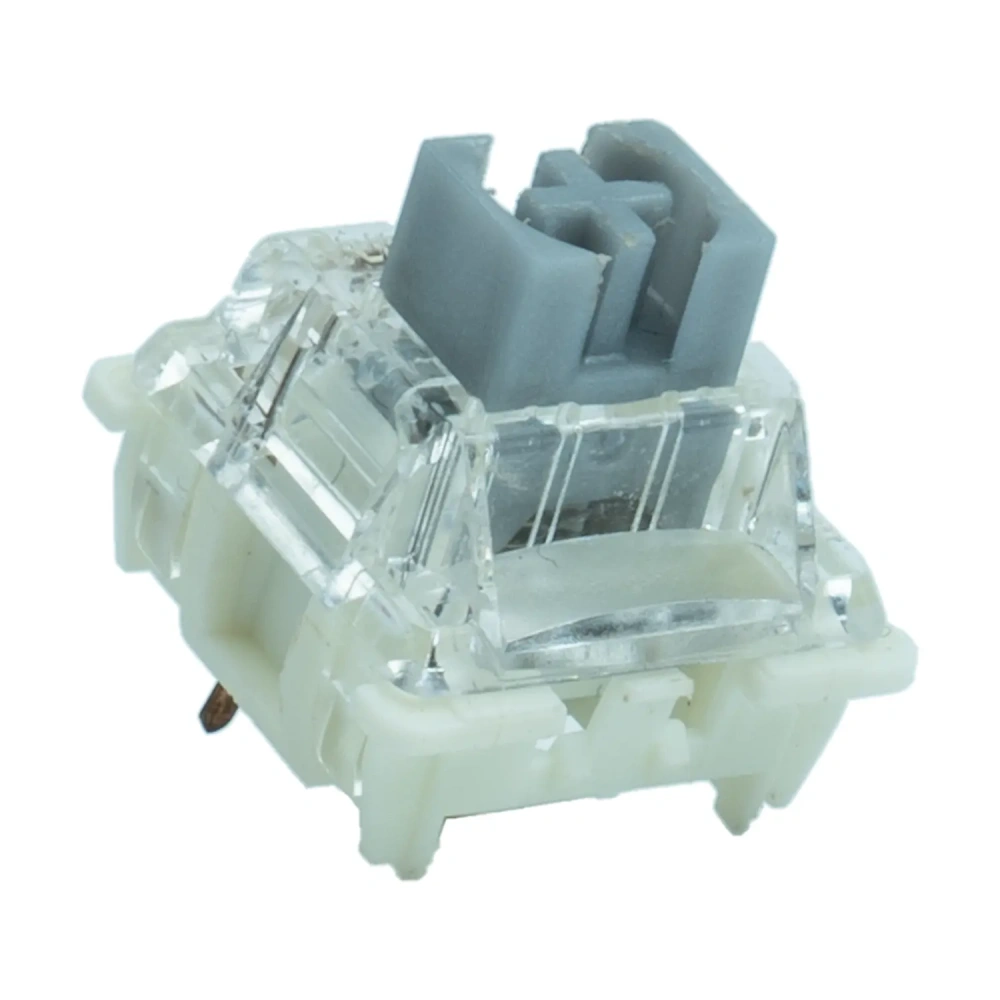

Silver |
45±15 gf |
1.2±0.3mm |
3.4 max |
3-Pin/5-Pin |
Linear |
Yes |
SMD |
 |

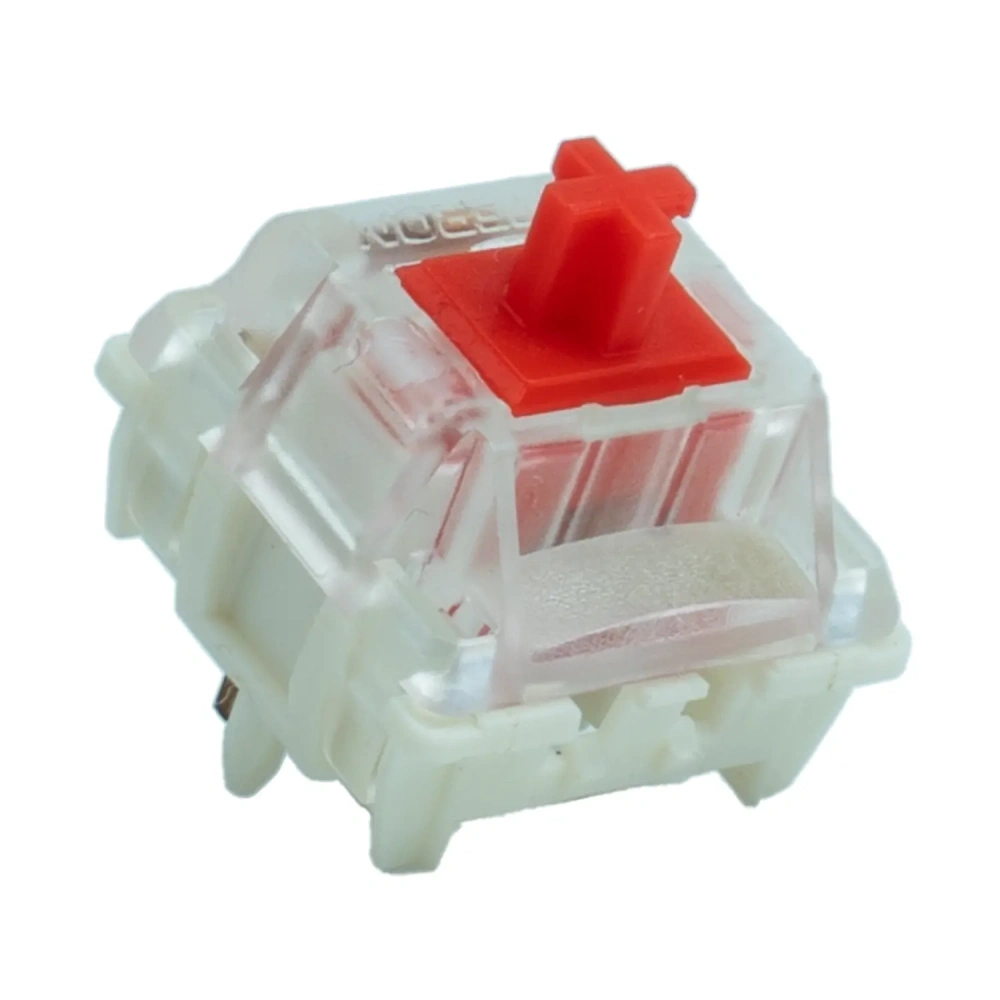

Red |
45±15 gf |
2.0±0.6 mm |
4.0 max |
3-Pin/5-Pin |
Linear |
Yes |
SMD |
 |

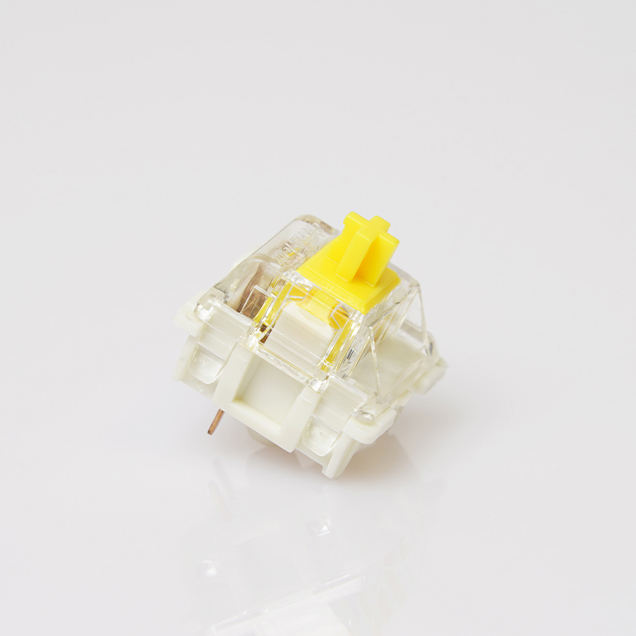

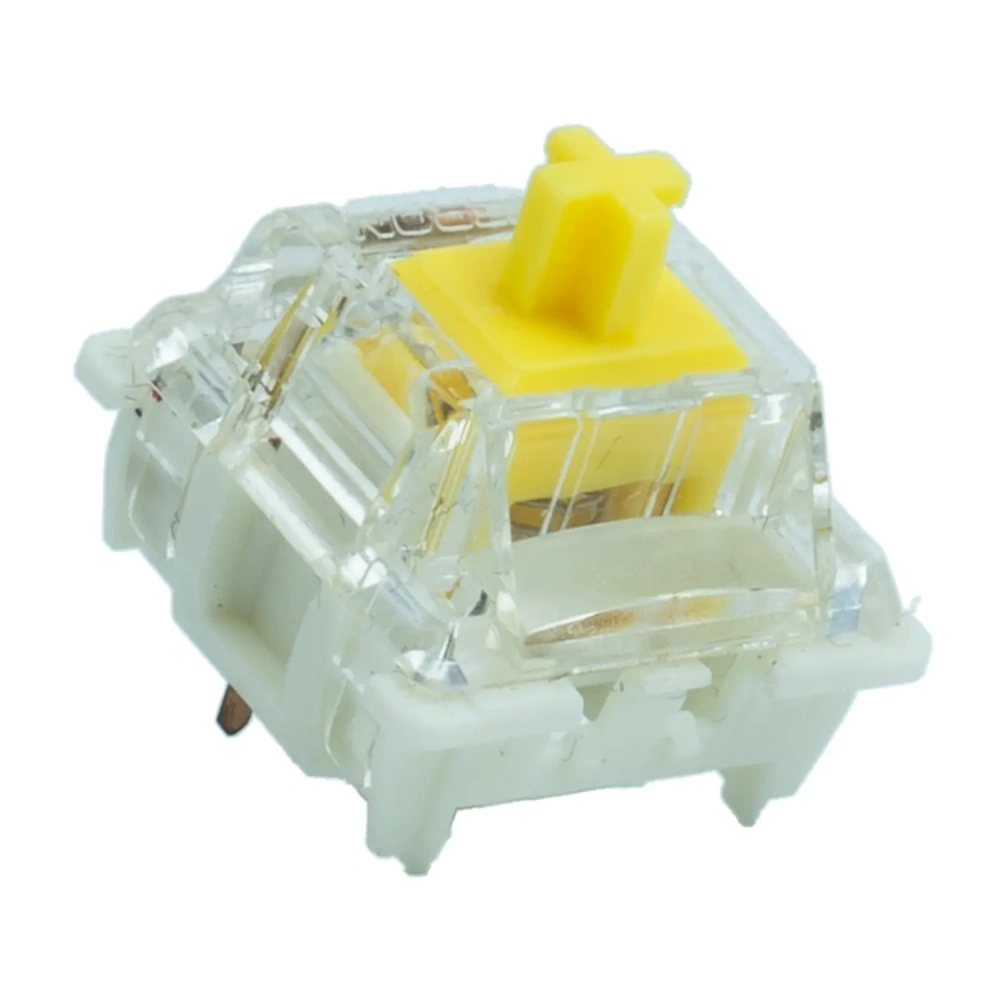

Yellow |
50±15 gf |
2.0±0.6 mm |
4.0 max |
3-Pin/5-Pin |
Linear |
Yes |
SMD |
 |

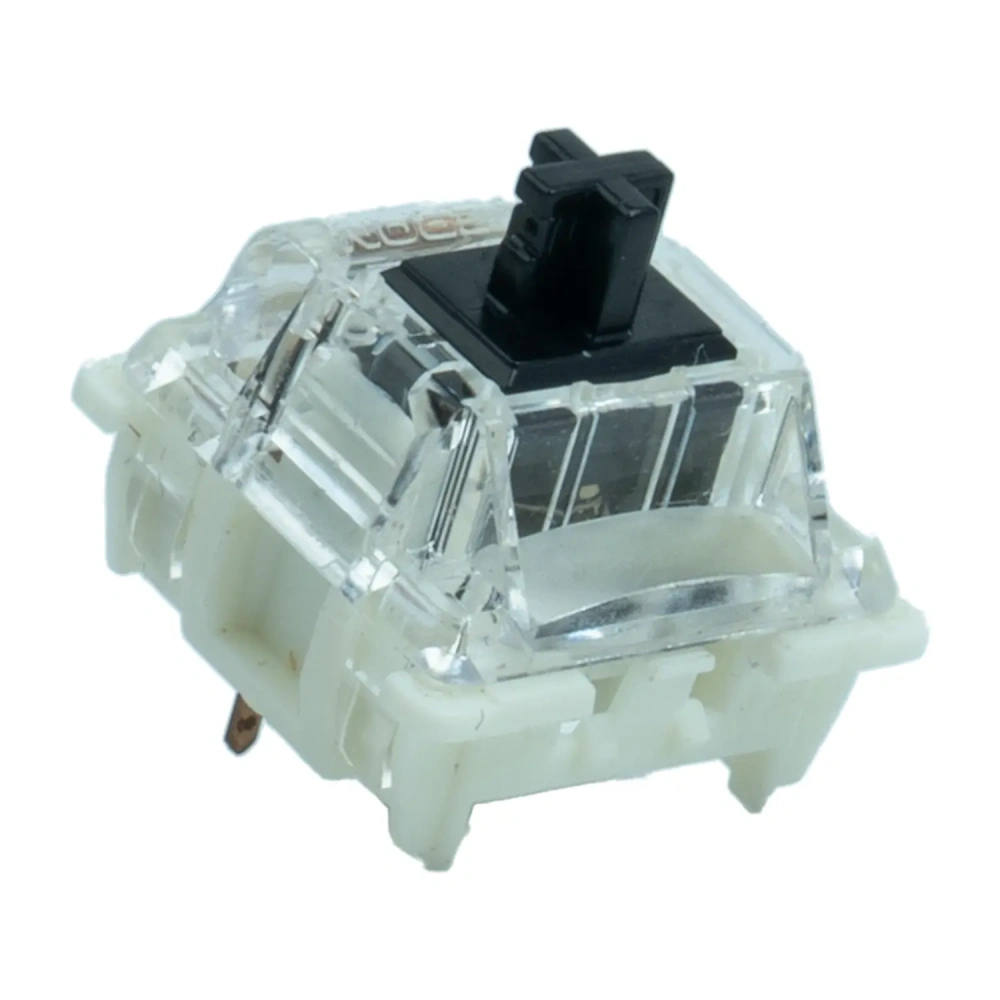

Black |
60±15 gf |
2.0±0.6 mm |
4.0 max |
3-Pin/5-Pin |
Linear |
Yes |
SMD |
 |
Brown |
55±15 gf |
2.0±0.6 mm |
4.0 max |
3-Pin/5-Pin |
Tactile |
Yes |
SMD |
 |

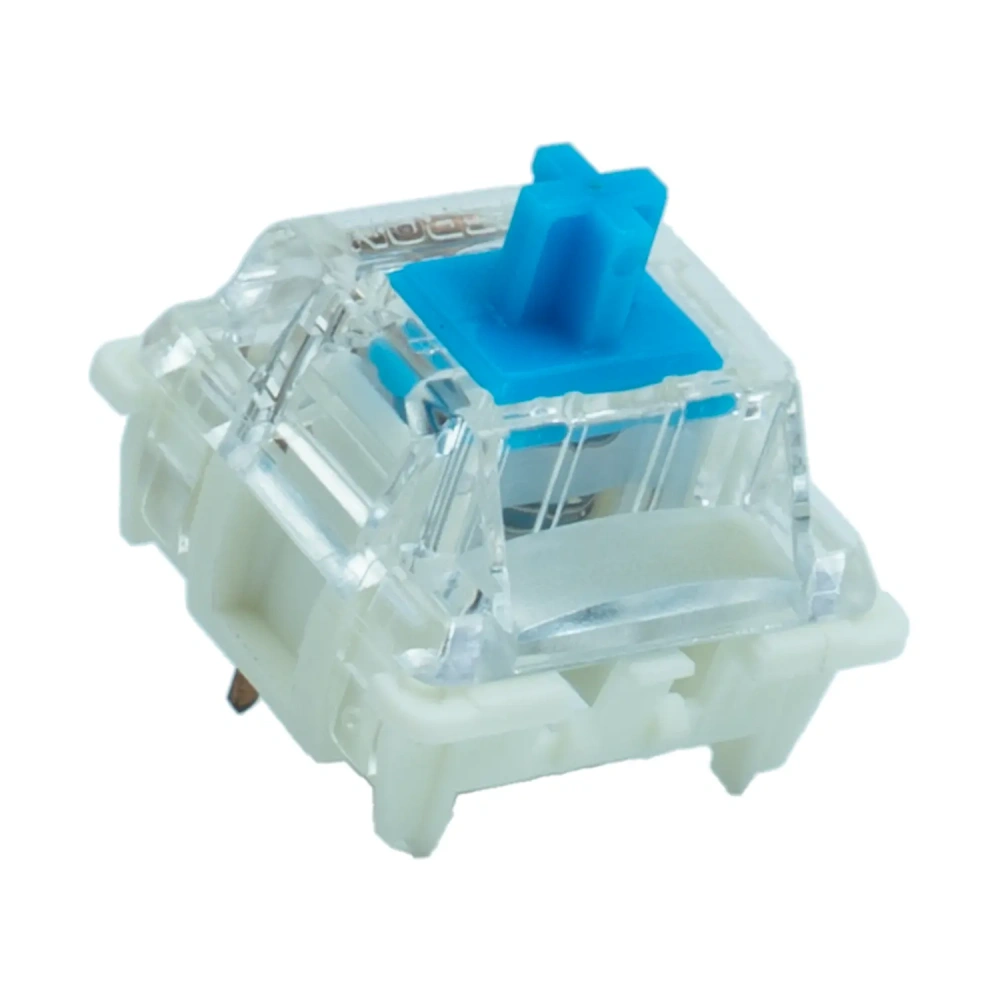

Blue |
60±15 gf |
2.3±0.6 mm |
4.0 max |
3-Pin/5-Pin |
Clicky |
NO |
SMD |
|
• Type: Linear
• Pins: 3pin/5pin
• Pre-Travel: 2.0±0.6 mm
• Total Travel: 4.0 mm Max
• Operation Force: 38±15 gf
• Bottom Touching Force: 45 gf
• Spring: 20 mm |
 |
 |
• Type: Linear
• Pins: 3pin/5pin
• Pre-Travel: 1.2±0.6 mm
• Total Travel: 3.4 mm Max
• Operation Force: 45±15 gf
• Bottom Touching Force: 50 gf
• Spring: 22 mm |
 |
 |
• Type: Linear
• Pins: 3pin/5pin
• Pre-Travel: 2.0±0.6 mm
• Total Travel: 4.0 mm Max
• Operation Force: 45±15 gf
• Bottom Touching Force: 50gf
• Spring: 20.5 mm |
 |
 |
• Type: Linear
• Pins: 3pin/5pin
• Pre-Travel: 2.0±0.6 mm
• Total Travel: 4.0 mm Max
• Operation Force: 50±15 gf
• Bottom Touching Force: 67 gf
• Spring: 15.4 mm |
 |
 |
• Type: Linear
• Pins: 3pin/5pin
• Pre-Travel: 2.0±0.6 mm
• Total Travel: 4.0 mm Max
• Operation Force: 60±15 gf
• Bottom Touching Force: 70 gf
• Spring: 15.4 mm |
 |
 |
• Type: Tactile
• Pins: 3pin/5pin
• Pre-Travel: 2.0±0.6 mm
• Total Travel: 4.0 mm Max
• Operation Force: 55±15 gf
• Bottom Touching Force: 50 gf
• Spring: 20.5 mm |
 |
 |
• Type: Clicky
• Pins: 3pin/5pin
• Pre-Travel: 2.3±0.6 mm
• Total Travel: 4.0 mm Max
• Operation Force: 60±15 gf
• Bottom Touching Force: 60 gf
• Spring: 14.5 mm
|
 |
 |
|
