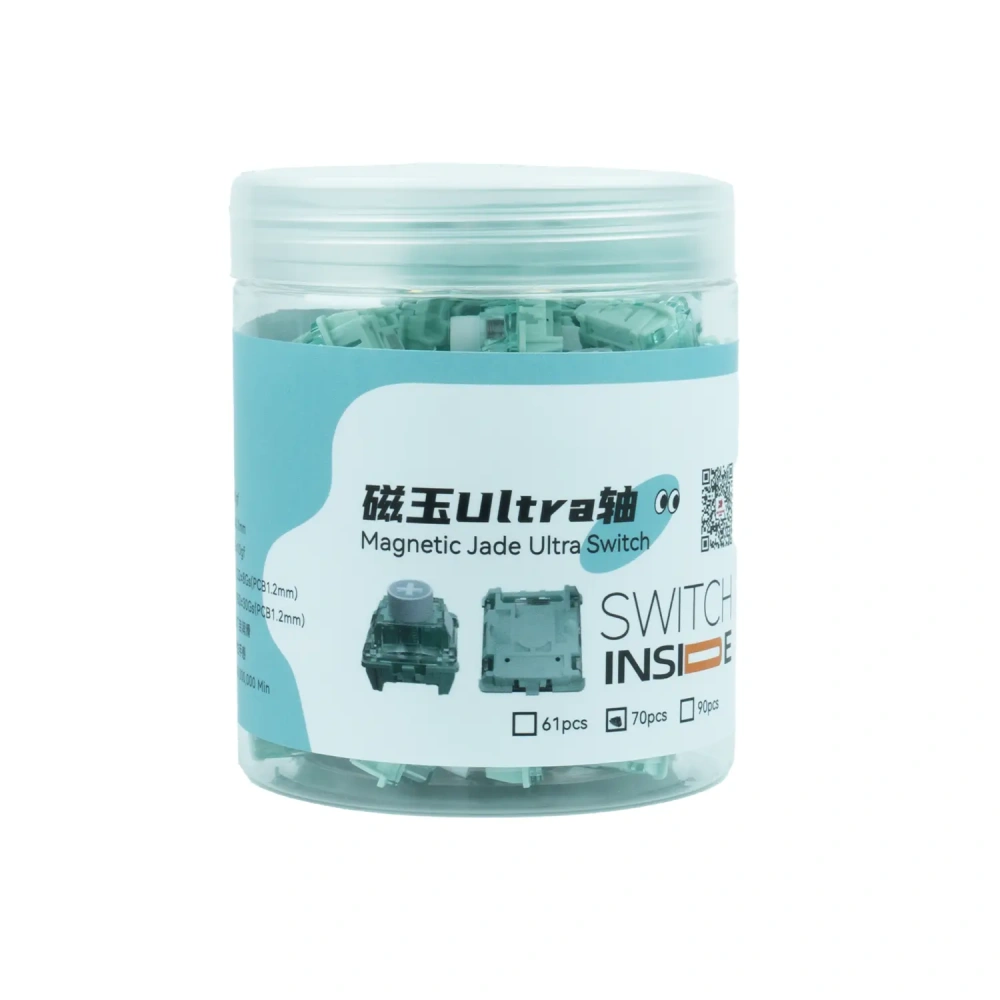

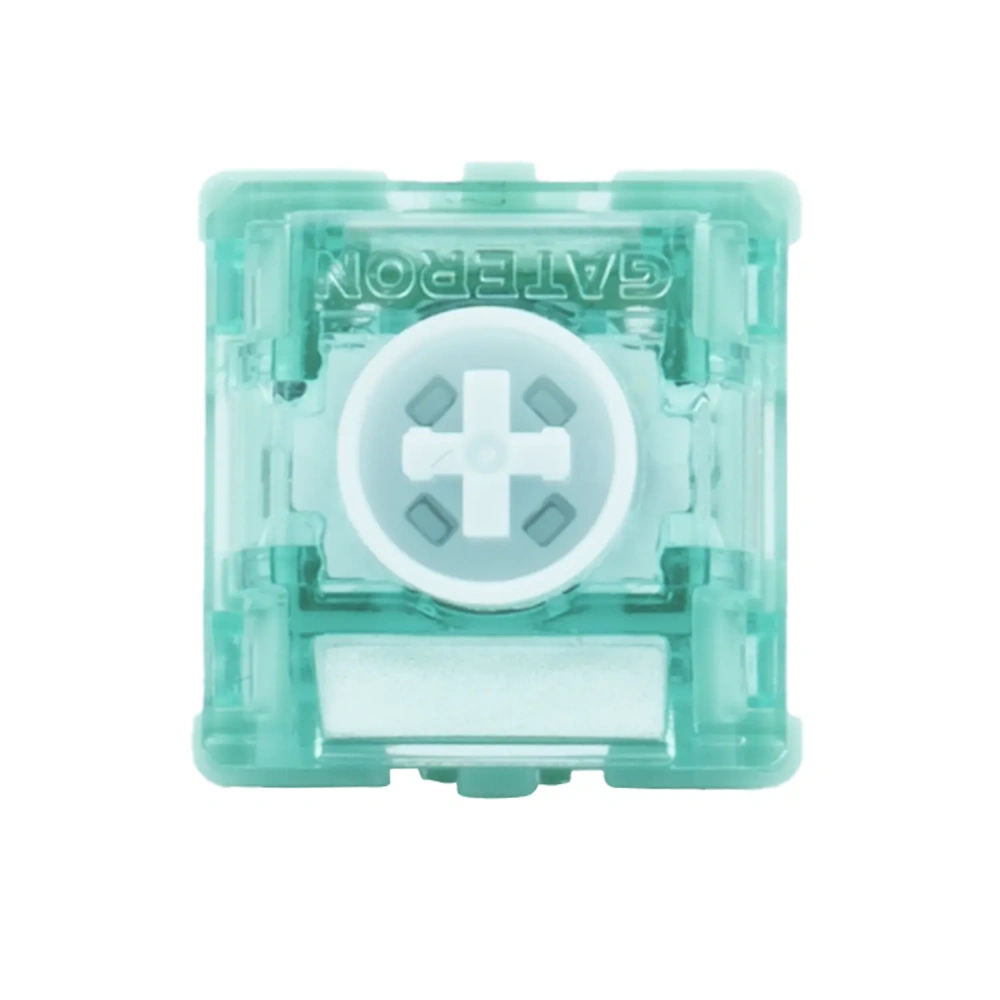

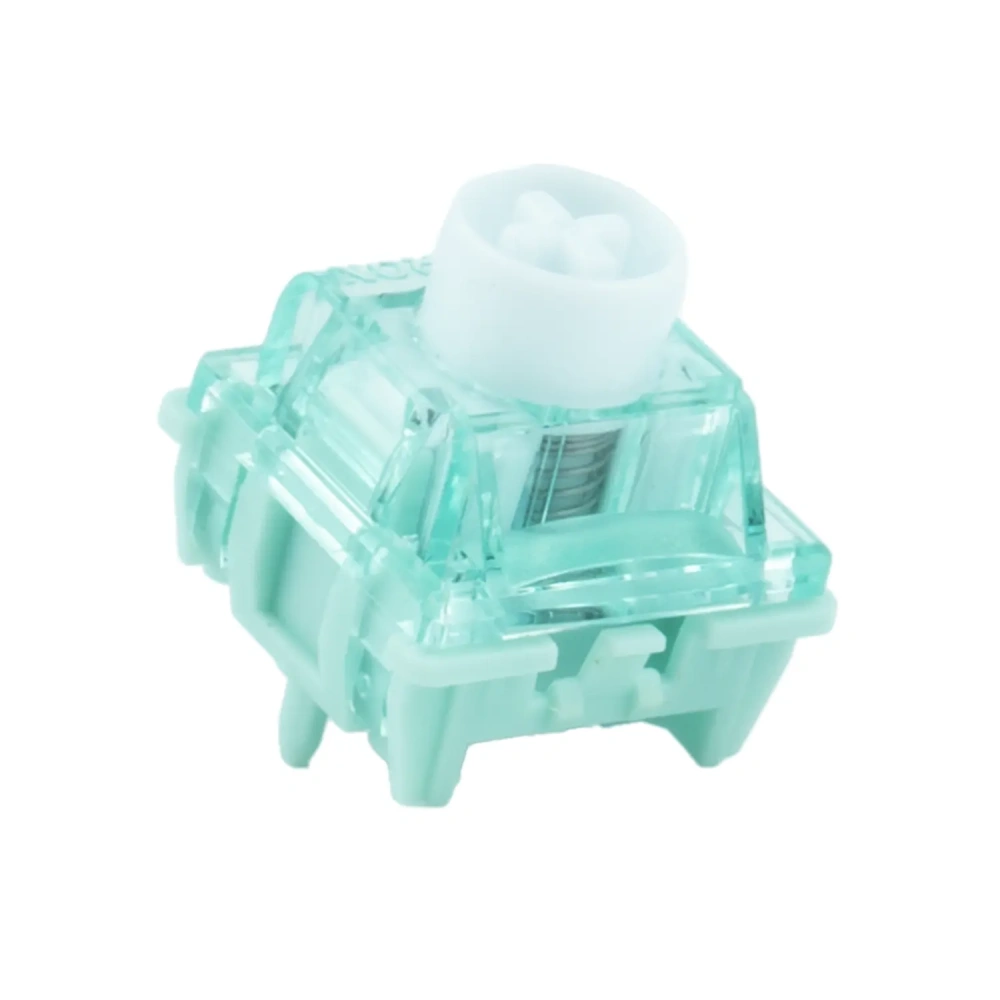

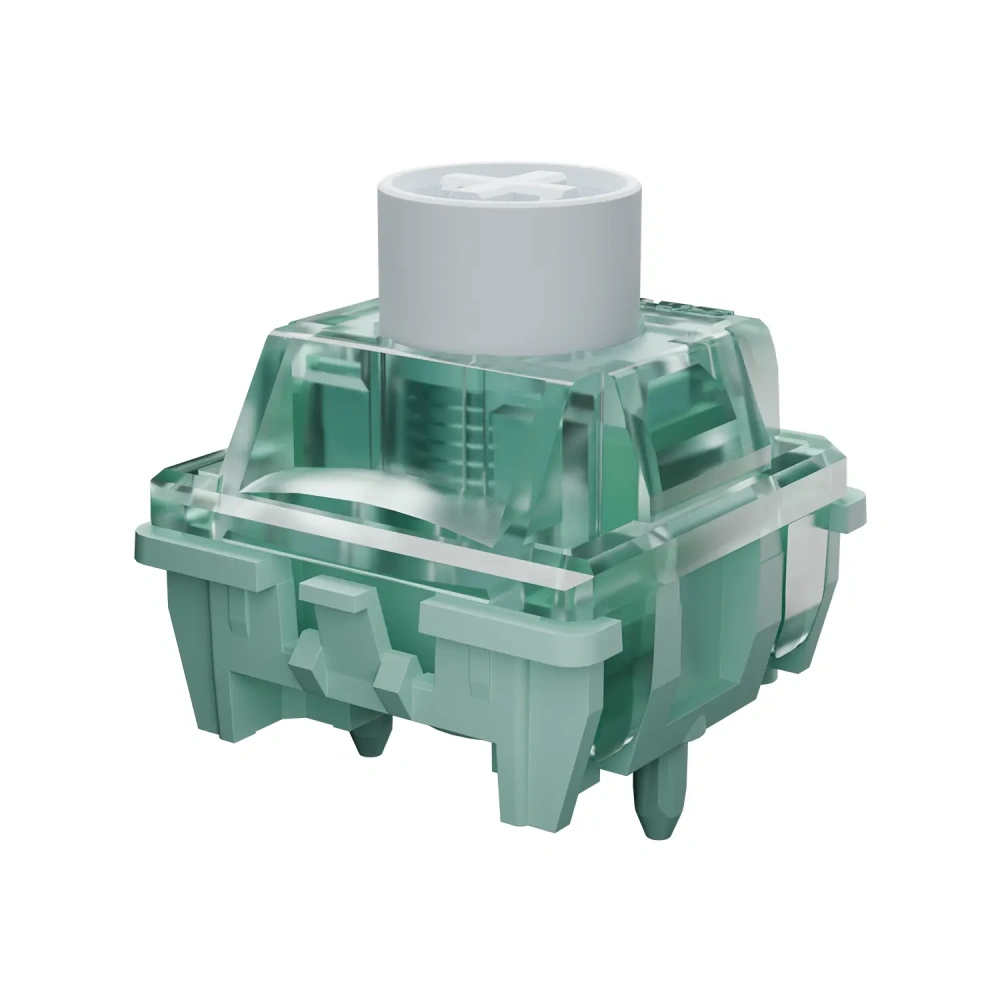

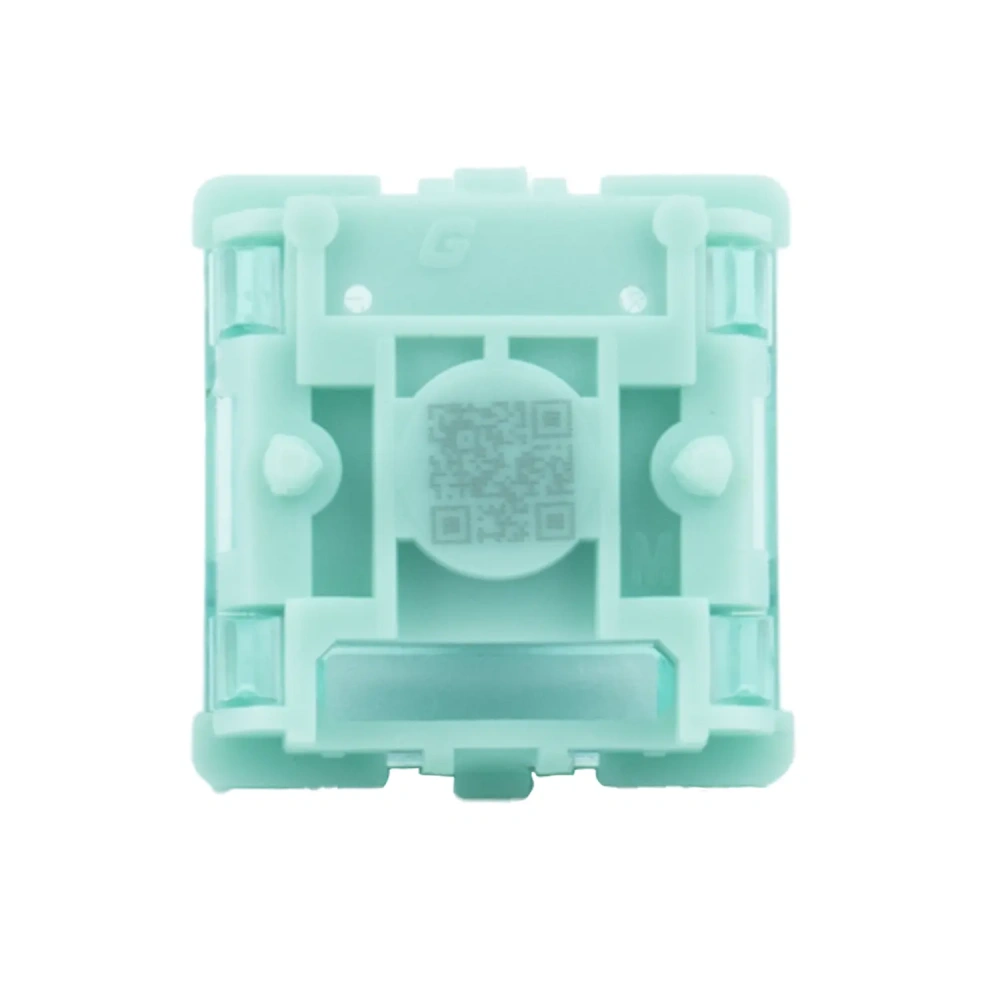

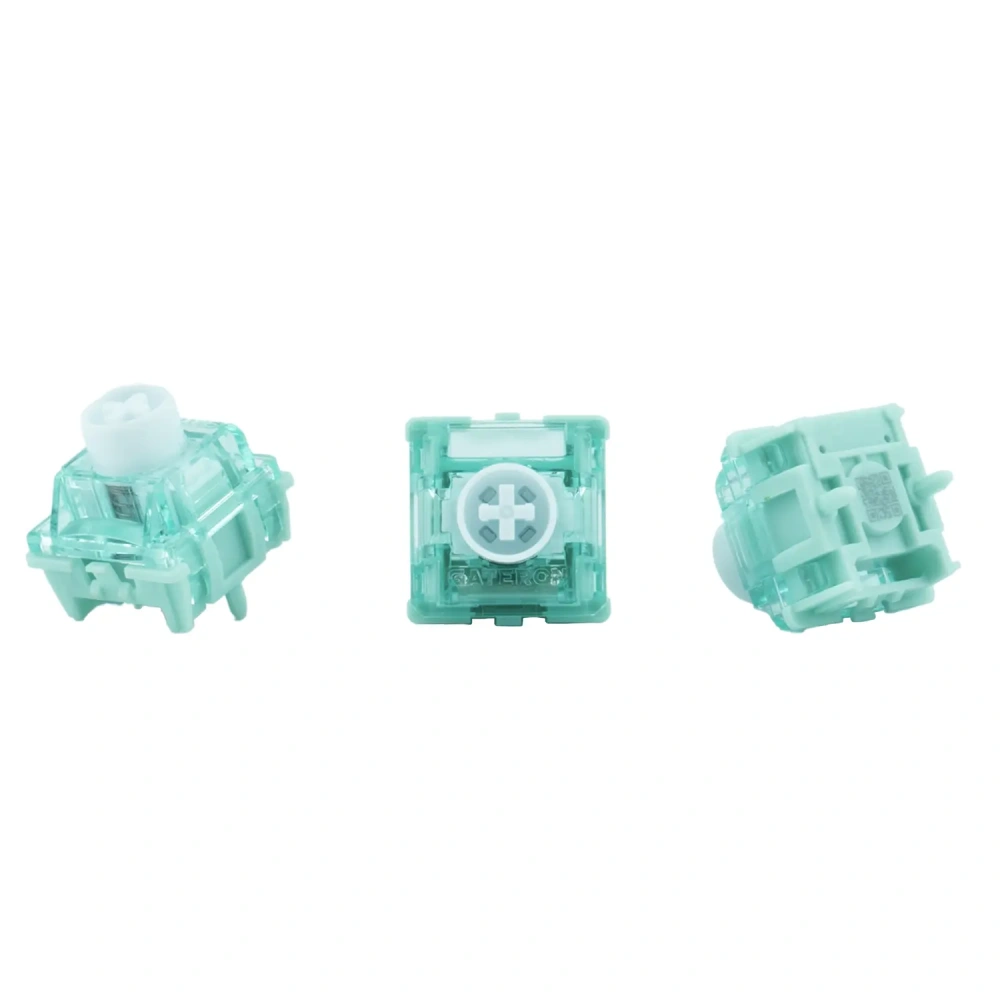

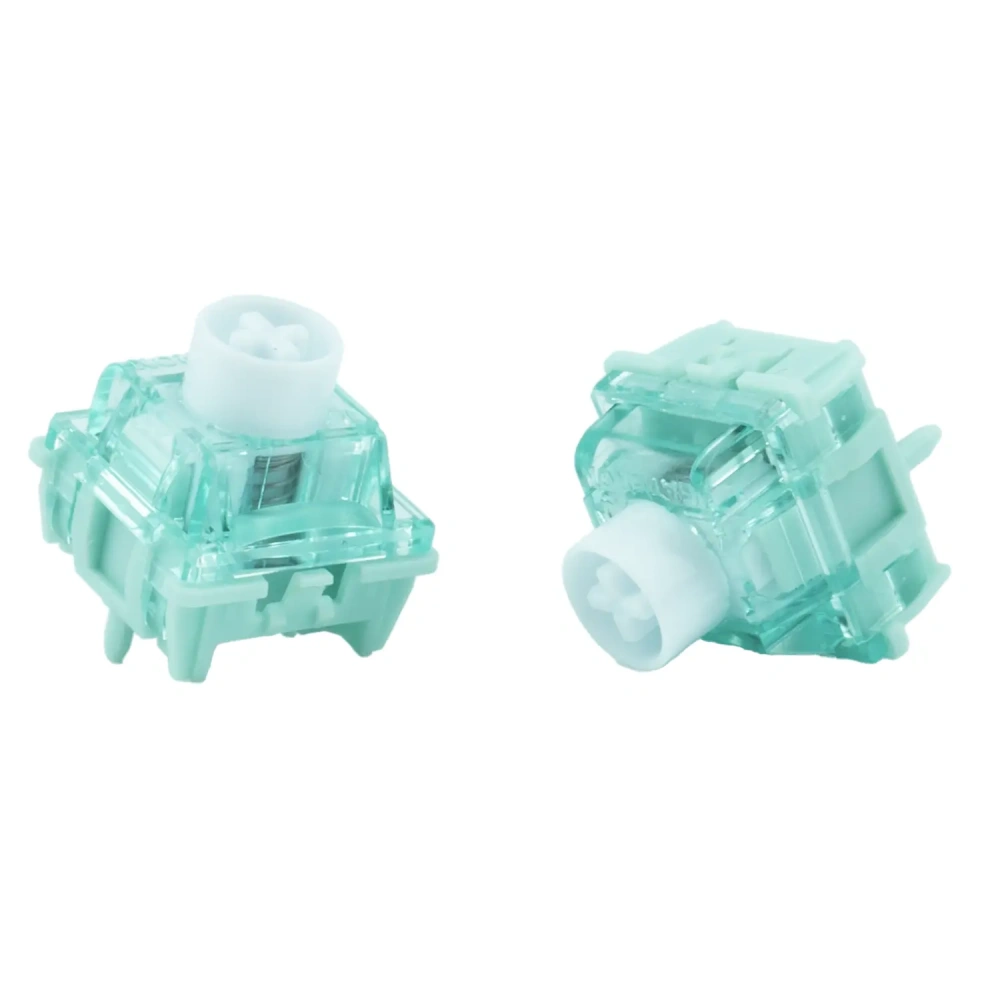

GATERON Magnetic Jade Ultra HE Switch Set – Dual-Drive Modular System

Name: GATERON Magnetic Jade Ultra HE Switch Set – Dual-Drive Modular System
Brand: Gateron
SKU: KS-DZ-Z70A-119
Price: 56 USD
Availability: InStock
Rating: 5.0 (10 reviews)

Initial Force: 30±5gf
Bottom-out Force: 40±10gf
Total Travel: 3.2±0.1mm
Initial Magnetic Flux: 122±8GS (PCB1.2mm)
Bottom-out Magnetic Flux: 550±30GS (PCB1.2mm)
Spring: 19mm Customized Spring
Pre-Travel: Freely setting
Pre-Lubed: Yes
Typing Style: Linear

5.0 （10 Reviews）

164 Sold

$56.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (5)

1/1

GATERON Magnetic Jade Ultra HE Switch Features

Tip: The magnetic switch is designed for magnetic keyboards(Hall effect keyboards), not for mechanical keyboards.
Magnetic Keyboard Compatibility: This magnetic switch N-pole faces down to the PCB board; any keyboard model featuring downward-facing N-pole magnetic switches is compatible with this switch. Please check your keyboard before choosing this item.

Dual-Drive Modular Structure· Extreme Limitless Performance

GATERON's Innovative Dual-Drive Modular Magnetic Switch

A Revolutionary Dual-Drive Architecture--Pioneering the Split-Structure Magnetic Switch.
The permanent magnet and stem are decoupled into dual segments, where the upper section governs the keystroke, and the lower section activates the trigger.
Dedicated mechanics working in concert, delivering unwavering stability from the initial to the bottom-out.

Double-layer Back-covered Structure Designed to recreate the classic sound and feel of mechanical switches, bring the premium acoustics experience.

Permanent Magnet Integrated with Acoustic Chamber
Dual Back-covered Design for Enhanced Acoustics, Authentic Mechanical Switch Sound Reproduction, Superior Sound, Refined Acoustics.
Factory Pre-lubrication and a built-in lubrication channel, significantly reducing friction noise for a pure, silent typing experience.

The Translucent Jade Aesthetic – Understated Elegance
Where bright light is tempered to a gentle glow, diffusing a soft, jade-toned glow through the semi-translucent top housing.
Harsh light is softened, while low light reveals a deeply textured allure.

Factory pre-lubed, reducing noise effectively
Smooth typing feel, Million times keystrokes, Durable and long-lasting
Keeping premium performance with 150 million keystrokes
