Magnetic Switch Keyboard Review is a practical way for beginners to understand why Hall effect keyboards can feel smoother, respond faster, and stay consistent longer than many traditional designs. From GATERON’s manufacturing perspective, the difference starts with how the keystroke is detected: instead of relying on metal contact points, Hall effect systems measure magnetic changes. That single change affects feel, tuning freedom, and long-term stability.
What is Hall Effect
Hall effect is a physics principle that lets a sensor measure a magnetic field without needing physical contact.
When an electric current flows through a thin conductor (or semiconductor) and a magnetic field passes through it, the magnetic field pushes moving charges slightly to one side. That creates a tiny sideways voltage called the Hall voltage. A Hall sensor measures that voltage to tell how strong the magnetic field is (and sometimes its direction).
- Why It Matters In Keyboards
In a Hall effect (magnetic) keyboard, each key has:
- Amagnet (usually in the switch stem), and
When you press the key, the magnet moves closer to the sensor. The sensor detects the changing magnetic field and converts it into a signal. Because this is contactless, it enables:
✓ No metal contact triggering (less wear on "contact points")
✓ Adjustable actuation (you can set how far you press before it registers)
✓ Features like rapid trigger (very fast re-trigger based on movement)
✓ Stable feel over long use (signal comes from sensing, not clicking contacts)
- A Quick Real-World Example
- Key not pressed: magnet is farther away → weaker field reading
- Key pressed: magnet is closer → stronger field reading
- The keyboard uses that change to decide when the key is "on."
What Makes Hall Effect Keys Different in a Magnetic Switch Keyboard Review
A classic mechanical switch triggers when metal contacts touch. A Hall effect key triggers when a sensor reads a magnetic field change. This means the keyboard can "sense" actuation without physical electrical contact, which is one reason many users describe magnetic keyboards as more stable over time.
For beginners, you can think of it this way: mechanical switches are like a light that turns on only when a button fully clicks a contact. Hall effect switches are more like a dimmer sensor that can detect movement precisely across the travel. This is why magnetic keyboards often support adjustable actuation and advanced trigger behaviors.
In a Magnetic Switch Keyboard Review, the most important beginner takeaway is not the buzzwords—it is the control: you can often set when a key triggers, and how it behaves as you press and release.
How Hall Effect Actuation Changes Feel, Speed, and Control
Because actuation is sensor-based, many Hall effect keyboards allow you to set pre-travel freely (the point at which input is registered). This is not just a gaming feature. It also helps typing comfort. A lighter, earlier trigger can reduce effort. A deeper trigger can reduce accidental presses.
With a linear switch design like GATERON Magnetic Jade Ultra HE, the movement is smooth from top to bottom without a tactile bump. That smoothness matters because adjustable actuation only feels "clean" when friction and wobble are controlled.
Here are a few practical points beginners can use during comparisons:
✓ Adjustable Pre-Travel can help you tune for fast input or fewer mistakes
✓ Linear Travel is easier to learn because resistance feels consistent
✓ Stable Trigger Behavior matters more than extreme speed claims in real use
The goal of a good Hall effect setup is simple: when you press a key, it should feel predictable, and the input should match what you intended.
Magnetic Switch Keyboard Review Data: A Real Example From GATERON
Specifications are only useful when they translate to a real feeling. Let’s use a few key data points from the GATERON Magnetic Jade Ultra HE Switch Set to explain what they mean for users.
The switch starts at an initial force of 30±5gf and reaches bottom-out at 40±10gf, with a total travel of 3.2±0.1mm. For beginners, this usually reads as "light to press, and not tiring," especially over long typing sessions. The travel length is a familiar full-size feel, which makes it easier for new users to adapt.
It also uses a 19mm customized spring, designed to keep the press smooth and controlled. Combined with factory pre-lubing, this helps reduce scratchy noise and uneven friction—two of the most common complaints when people try low-quality switches.
A Magnetic Switch Keyboard Review should also highlight that Hall effect triggering depends on magnetic sensing. In this switch, the magnetic flux changes from 122±8GS at the start to 550±30GS at bottom-out (based on a 1.2mm PCB). You do not need to memorize these numbers. The useful point is that the sensor receives a clear signal difference across the press, which supports consistent detection.
Inside the Dual-Drive Modular Structure: Why It Improves Stability

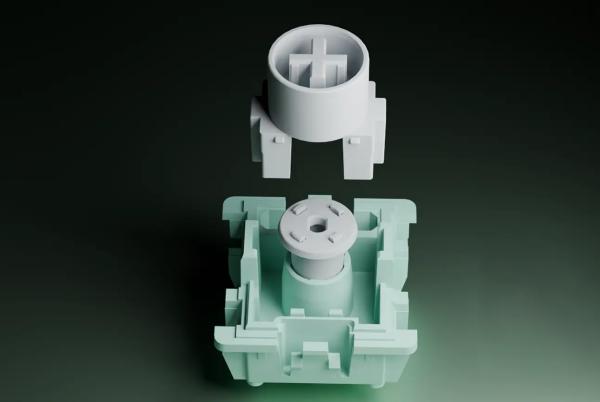

Many users judge Hall effect switches only by "adjustable actuation," but the internal structure is what keeps that adjustability reliable. GATERON’s Dual-Drive Modular System is built around a split structure: the magnet and stem are decoupled into two segments. The upper section governs the keystroke feel, while the lower section activates the trigger.
For users, this matters because it helps maintain stable performance from the first millimeter of movement to the bottom-out. When the mechanical feel and the trigger mechanism each have dedicated roles, the switch can feel steadier and more repeatable—especially if you are using sensitive actuation settings.
GATERON also uses a double-layer back-covered structure designed to recreate a classic mechanical sound and feel, so Hall effect keyboards can avoid sounding "thin" or "hollow." This is important for beginners because many first impressions come from sound. A keyboard that sounds premium is often perceived as more controllable and more satisfying.
Acoustics, Smoothness, and the "Jade" Aesthetic That Users Actually Notice
A Magnetic Switch Keyboard Review should not ignore the experience details. If a switch feels good but sounds harsh, many users will not keep it long-term. GATERON Magnetic Jade Ultra HE integrates the permanent magnet with an acoustic chamber and uses a dual back-covered design to refine sound output.
Factory pre-lubing is also not a cosmetic add-on. It is a functional advantage:
✓ Pre-Lubed + Lubrication Channel helps reduce friction noise
✓ Smoother Travel makes adjustable actuation feel more accurate
✓ Lower Unwanted Noise supports both office and late-night use

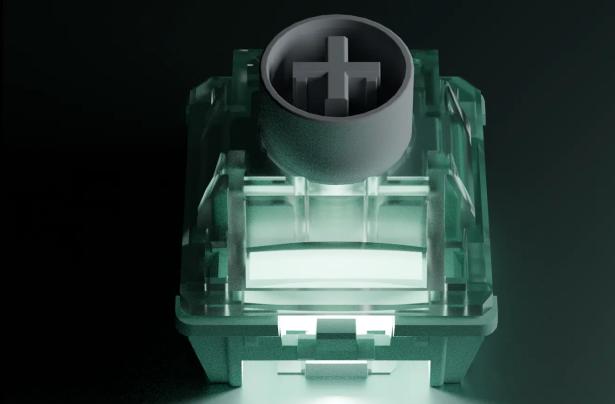

Visually, the semi-translucent "jade" top housing is designed to diffuse light into a softer glow. In bright environments, it looks clean and understated. In low light, it shows more depth and texture. For users building RGB setups, this means lighting can appear more premium without needing extreme brightness.
Compatibility Tips and a Clear CTA for Buyers and Builders
One important note for beginners: magnetic switches are designed for Hall effect keyboards, not traditional mechanical keyboards. The triggering method is different, and using the wrong platform will not work.
This switch is compatible with keyboards where the N-pole faces down to the PCB. In other words, if your keyboard model uses downward-facing N-pole magnetic switches, it should match this design—but you should check your keyboard specification before purchasing.
Durability is another reason people move toward Hall effect systems. GATERON Magnetic Jade Ultra HE is engineered to keep premium performance with a rated lifespan of 150 million keystrokes. In practical terms, this is about long-term consistency: the switch is designed to stay smooth and stable through heavy daily use.
CTA (Call-to-Action):
Upgrade with intent: select magnetic switches built for consistent sensing, smooth travel, and refined sound. Contact GATERON to request the Magnetic Jade Ultra HE switch set, confirm your model’s compatibility, and get hands-on help tuning actuation for typing and gaming.
